Product Summary
The 301CNQ045 center tap Schottky rectifier module has been optimized for low reverse leakage at high temperature. The proprietary barrier technology allows for reliable operation up to 175 °C junction temperature. Typical applications are in high current switching power supplies, plating power supplies, UPS systems, converters, free-wheeling diodes, welding, and reverse battery protection.
Parametrics
301CNQ045 absolute maximum ratings: (1)Max. Average Forward Current:300A; (2)Max. Peak One Cycle Non-Repetitive Surge Current:5μs Sine or 3μs Rect. pulse:16000A;10ms Sine or 6ms Rect. pulse:3200A; (3)Non-Repetitive Avalanche Energy:202mJ; (4)Repetitive Avalanche Current:30A.
Features
301CNQ045 features: (1)175 °C Tj operation; (2)Center tap module; (3)High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance; (4)Low forward voltage drop; (5)High frequency operation; (6)Guard ring for enhanced ruggedness and long term reliability.

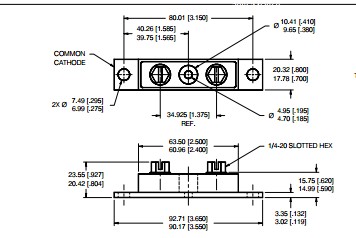

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 301CNQ045 |
|
DIODE SCHOTTKY 45V 300A TO-244AB |
Data Sheet |
Negotiable |
|
||||
|
301CNQ045PbF |
Other |
|
Data Sheet |
Negotiable |
|
||||
