53398-0490

53398-0490, 1.25mm (.049") Pitch PicoBlade Header, SMD, 1A, 125V, 30

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~0.15 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~0.15

PartNumber:: 53398-0490

Brand:: Molex - Molex | Pack: SMD | D/C: 06+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Olin,Ms Stiny's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-07-13

From Other Seller

Part Number:53398-0490
US $0.10 - 0.15
CM300DY-12NF

US $63.00 - 80.00 / Piece
(0) Remove
RTL8102EL

US $1.00 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

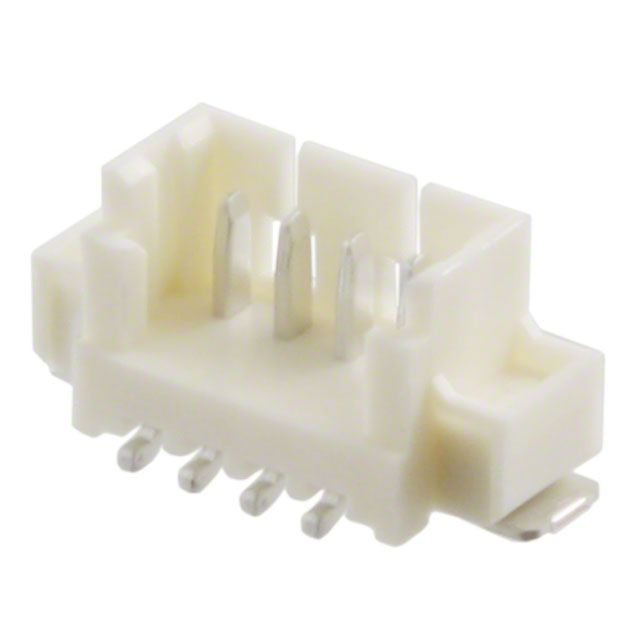

The 53398-0490 is a 1.25mm (.049") Pitch PicoBlade Header.

Parametrics

53398-0490 absolute maximum ratings: (1)Temperature Range - Operating: -40℃ to +85℃; (2)Termination Interface: Style: Surface Mount; (3)Current - Maximum per Contact: 1A; (4)Voltage - Maximum: 125V.

Features

53398-0490 features: (1)Breakaway: No; (2)Circuits (Loaded): 4; (3)Color - Resin: Natural; (4)Durability (mating cycles max): 30; (5)First Mate / Last Break: No; (6)Flammability: 94V-0; (7)Glow-Wire Compliant: No; (8)Guide to Mating Part: No; (9)Lock to Mating Part: Yes; (10)Mated Height (in): 0.224 In; (11)Mated Height (mm): 5.70 mm; (12)Material - Metal: Phosphor Bronze; (13)Material - Plating Mating: Tin; (14)Material - Plating Termination: Tin; (15)Material - Resin: Nylon; (16)Number of Rows: 1; (17)Orientation: Vertical; (18)PC Tail Length (in): 0.024 In; (19)PC Tail Length (mm): 0.60 mm; (20)PCB Locator: No; (21)PCB Retention: Yes; (22)Packaging Type: Embossed Tape on Reel; (23)Pitch - Mating Interface (in): 0.049 In; (24)Pitch - Mating Interface (mm): 1.25 mm; (25)Polarized to Mating Part: Yes; (26)Polarized to PCB: Yes; (27)Shrouded: Partial; (28)Stackable: No.
