Product Summary

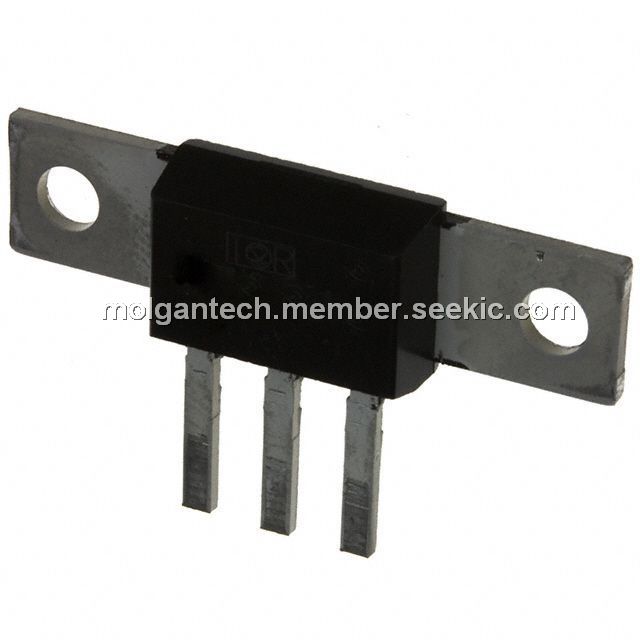

The 83CNQ100A center tap Schottky rectifier module has been optimized for low reverse leakage at high temperature. The proprietary barrier technology allows for reliable operation up to 175 °C junction temperature. Typical applications are in switching power supplies, converters, freewheeling diodes, and reverse battery protection.

Parametrics

83CNQ100A absolute maximum ratings: (1)Max. Average Forward Current:80A; (2)Max. Peak One Cycle Non-Repetitive Surge Current:5μs Sine or 3μs Rect. pulse:7000A;10ms Sine or 6ms Rect. pulse:720A; (3)Non-Repetitive Avalanche Energy:15mJ; (4)Repetitive Avalanche Current:1A.

Features

83CNQ100A features: (1)Center tap module; (2)High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance; (3)Low forward voltage drop; (4)High frequency operation; (5)Guard ring for enhanced ruggedness and long term reliability; (6)New fully transfer-mold low profile, small footprint, high current package.

Diagrams

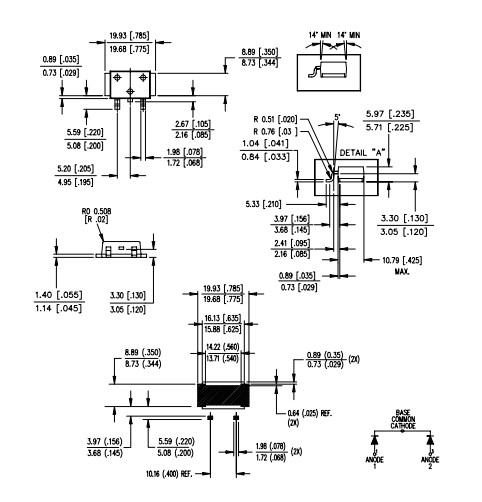

83CNQ100A Dimension Diagram
