Product Summary
The AD7790BRMZ is a buffered sigma-delta ADC. The AD7790BRMZ is a low power, complete analog front end for low frequency measurement applications. It contains a low noise 16-bit Σ-Δ ADC with one differential input that can be buffered or unbuffered along with a digital PGA, which allows gains of 1, 2, 4, and 8. The AD7790BRMZ operates from an internal clock. Therefore, the user does not have to supply a clock source to the device. The applications of the AD7790BRMZ include Smart transmitters, Battery applications, Portable instrumentation, Sensor measurement, Temperature measurement, Pressure measurement, Weigh scales, 4 to 20 mA loops.
Parametrics
AD7790BRMZ absolute maximum ratings: (1)VDD to GND: -0.3 V to +7 V; (2)Analog Input Voltage to GND: -0.3 V to VDD + 0.3 V; (3)Reference Input Voltage to GND: -0.3 V to VDD + 0.3 V; (4)Total AIN/REFIN Current (Indefinite): 30 mA; (5)Digital Input Voltage to GND: -0.3 V to VDD + 0.3 V; (6)Digital Output Voltage to GND: -0.3 V to VDD + 0.3 V; (7)Operating Temperature Range: -40℃ to +105℃; (8)Storage Temperature Range: -65℃ to +150℃; (9)Maximum Junction Temperature: 150℃; (10)MSOP, θJA Thermal Impedance: 206℃/W; θJC Thermal Impedance: 44℃/W; (11)Lead Temperature, Soldering (10 sec): 300℃; IR Reflow, Peak Temperature: 220℃.
Features
AD7790BRMZ features: (1)Power, Supply: 2.5 V to 5.25 V operation; Normal: 75 μA maximum; Power-down: 1 μA maximum; (2)RMS noise: 1.1 μV at 9.5 Hz update rate; (3)16-bit p-p resolution; (4)Integral nonlinearity: 3.5 ppm typical; (5)Simultaneous 50 Hz and 60 Hz rejection; (6)Internal clock oscillator; (7)Programmable gain amplifier; (8)Rail-to-rail input buffer; (9)VDD monitor channel; (10)Temperature range: -40℃ to +105℃; (11)10-lead MSOP.

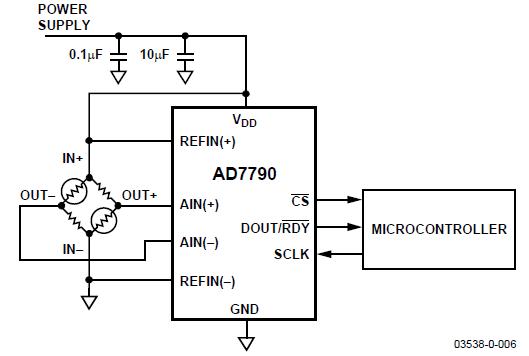

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD7790BRMZ |
|
IC ADC 16BIT SIGMA-DELTA 10-MSOP |
Data Sheet |
|
|
||||||||||||||||||||
|
AD7790BRMZ-REEL |
|
IC ADC 16BIT SIGMA-DELTA 10-MSOP |
Data Sheet |
|
|
||||||||||||||||||||
