AD9731BR

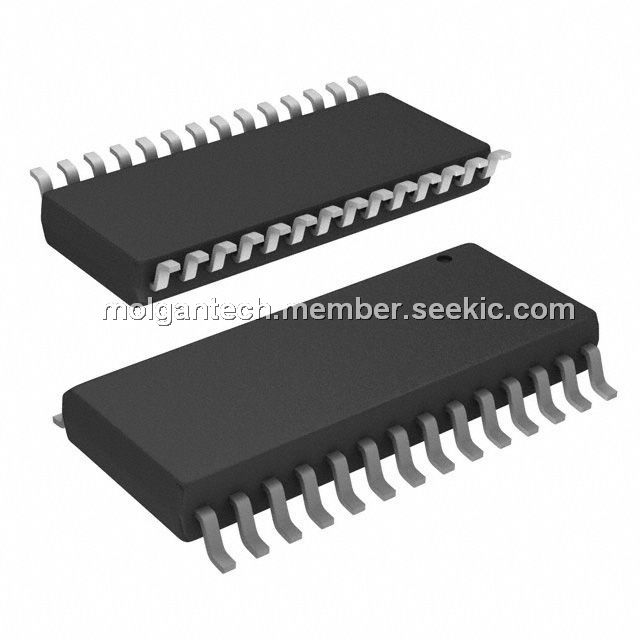

AD9731BR, 10-Bit, 170 MSPS, bipolar D/A Converter, SOIC-28, 66 dB, 439 mW

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.00~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.00~3.00

PartNumber:: AD9731BR

Brand:: Analog Devices - ADI | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Olin,Ms Stiny's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-07-05

From Other Seller

Part Number:AD9731BR
US $2.00 - 3.00
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
HEF4051BT

US $0.15 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

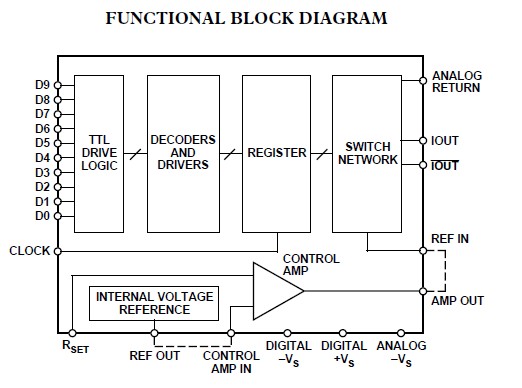

The AD9731BR is a 10-bit, 170 MSPS, bipolar D/A converter that is optimized to provide high dynamic performance, yet offer lower power dissipation and more economical pricing than afforded by previous bipolar high performance DAC solutions. The AD9731BR was designed primarily for demanding communications systems applications where wideband spurious-free dynamic range (SFDR) requirements are strenuous and could previously only be met by using a high performance DAC such as the industry-standard AD9721.The AD9731BR is widely used in Digital Communications, Direct Digital Synthesis, Waveform Reconstruction, High Speed Imaging and 5 MHz–65 MHz HFC Upstream Path.

Parametrics

AD9731BR absloute maximum ratings: (1)Analog Output: –VS to +VS; (2)+VS: +6 V; (3)Digital Inputs: –0.7 V to +VS; (4)–VS: –7 V; (5)Analog Output Current: 30 mA; (6)Control Amplifier Input Voltage Range: 0 V to –4 V; (7)Reference Input Voltage Range: 0 V to –VS; (8)Maximum Junction Temperature: +150°C; (9)Operating Temperature Range: –40°C to +85°C; (10)Internal Reference Output Current: 500 mA; (11)Lead Temperature (10 sec Soldering): +300°C; (12)Storage Temperature: –65°C to +165°C; (13)Control Amplifier Output Current: ±2.5 mA.

Features

AD9731BR features: (1)170 MSPS Update Rate; (2)TTL/High-Speed CMOS-Compatible Inputs; (3)Wideband SFDR: 66 dB @ 2 MHz/50 dB @ 65 MHz; (4)Pin-Compatible, Lower Cost Replacement for Industry Standard AD9721 DAC; (5)Low Power: 439 mW @ 170 MSPS; (6)Fast Settling: 3.8 ns to 1/2 LSB; (7)Internal Reference; (8)Two Package Styles: 28-Lead SOIC and SSOP.
