Product Summary
The AD9910BSVZ is a direct digital synthesizer (DDS) featuring an integrated 14-bit DAC and supporting sample rates up to 1 GSPS. The AD9910BSVZ employs an advanced, proprietary DDS technology that provides a significant reduction in power consumption without sacrificing performance. The applications of the AD9910BSVZ are Agile local oscillator (LO) frequency synthesis, Programmable clock generator, FM chirp source for radar and scanning systems, Test and measurement equipment, Acousto-optic device drivers, Polar modulator, Fast frequency hopping.
Parametrics
AD9910BSVZ absolute maximum ratings: (1)AVDD (1.8 V), DVDD (1.8 V) Supplies:2 V; (2)AVDD (3.3 V), DVDD_I/O (3.3 V) Supplies:4 V; (3)Digital Input Voltage:-0.7 V to +4 V; (4)Digital Output Current:-5 mA; (5)Storage Temperature Range:-65℃ to +150℃; (6)Operating Temperature Range:-40℃ to +85℃; (7)θJA:22℃/W; (8)θJC:2.8℃/W; (9)Maximum Junction Temperature:150℃; (10)Lead Temperature (10 sec Soldering):300℃.
Features
AD9910BSVZ features: (1)1 GSPS internal clock speed (up to 400 MHz analog output); (2)Integrated 1 GSPS, 14-bit DAC ; (3)32-bit tuning word ; (4)Phase noise ≤ -125 dBc/Hz @ 1 kHz offset (400 MHz carrier; (5)Excellent dynamic performance with >80 dB narrow-band SFDR ; (6)Serial input/output (I/O) control ; (7)Automatic linear or arbitrary frequency, phase, and amplitude sweep capability ; (8)8 frequency and phase offset profiles ; (9)1.8 V and 3.3 V power supplies ; (10)Software and hardware controlled power-down ; (11)100-lead TQFP_EP package ; (12)Integrated 1024 word × 32-bit RAM ; (13)PLL REFCLK multiplier ; (14)Parallel datapath interface ; (15)Internal oscillator, can be driven by a single crystal ; (16)Phase modulation capability ; (17)Amplitude modulation capability ; (18)Multichip synchronization.

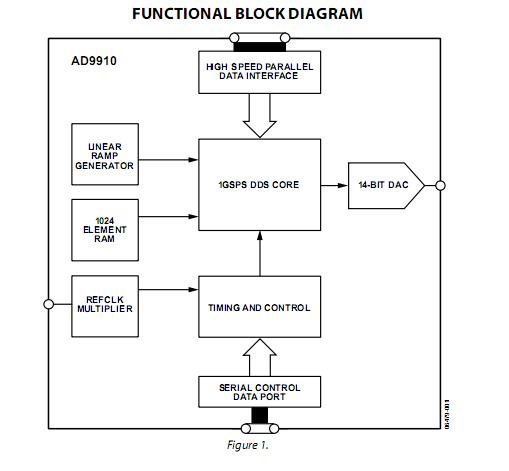

Diagrams
