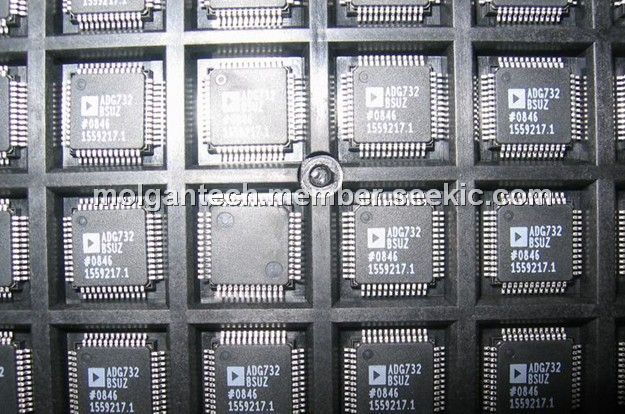

Product Summary
The ADG732BSUZ is a monolithic CMOS 32-channel/dual 16-channel analog multiplexer. The ADG732BSUZ switch one of 32 inputs (S1-S32) to a common output, D, as determined by the 5-bit binary address lines A0, A1, A2, A3, and A4. The ADG732BSUZ switch one of 16 inputs as determined by the 4-bit binary address lines A0, A1, A2, and A3. The applications of the ADG732BSUZ include Optical Applications, Data Acquisition Systems, Communication Systems, Relay Replacement, Audio and Video Switching, Battery-Powered Systems, Medical Instrumentation, Automatic Test Equipment.
Parametrics
ADG732BSUZ absolute maximum ratings: (1)VDD to VSS: 7 V; (2)VDD to GND:–0.3 V to +7 V; (3)VSS to GND: +0.3 V to –7 V; (4)Analog Inputs2: VSS – 0.3 V to VDD + 0.3 V or 30 mA, Whichever Occurs First; (5)Digital Inputs2: –0.3 V to VDD + 0.3 V or 30 mA, Whichever Occurs First; (6)Peak Current, S or D: 60 mA (Pulsed at 1 ms, 10% Duty Cycle Max); (7)Continuous Current, S or D: 30 mA; (8)Operating Temperature Range Industrial (B Version): –40℃ to +85℃; (9)Storage Temperature Range:–65℃ to +150℃; (10)Junction Temperature: 150℃; (11)Thermal Impedence (Four-layer board): 54.6℃/W; (12)Lead Temperature, Soldering (10 sec): 300℃; (13)IR Reflow, Peak Temperature (＜20 sec): 235℃.
Features
ADG732BSUZ features: (1)1.8 V to 5.5 V Single Supply; (2)±2.5 V Dual-Supply Operation; (3)4Ω On Resistance; (4)0.5Ω On Resistance Flatness; (5)48-Lead TQFP or 48-Lead 7mm×7mm CSP Packages; (6)Rail-to-Rail Operation; (7)30ns Switching Times; (8)Single 32-to-1 Channel Multiplexer; (9)Dual/Differential 16-to-1 Channel Multiplexer; (10)TTL/CMOS Compatible Inputs; (11)For Functionally Equivalent Devices with Serial Interface.

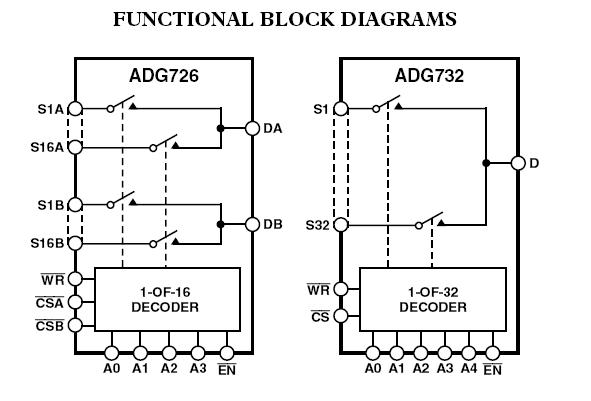

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADG732BSUZ |
|
IC MULTIPLEXER 32X1 48TQFP |
Data Sheet |
|
|
||||||||||||||||||
|
ADG732BSUZ-REEL |
|
IC MULTIPLEXER 32X1 48TQFP |
Data Sheet |
|
|
||||||||||||||||||
