ADSP-21160MKB-80

DSP Microcomputer, –0.3 V to +3.0 V, High-Performance, Super Harvard Architecture

Rated 5 Rating 5 | reviews | Write a review

Price:: US $250.00~400.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $250.00~400.00

PartNumber:: ADSP-21160MKB-80

Brand:: Analog Devices - ADI | Pack: DIP | D/C: 04+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Olin,Ms Stiny's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-11

From Other Seller

Part Number:ADSP-21160MKB-80
US $250.00 - 400.00
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

The ADSP-21160MKB-80 is a DSP Microcomputer.

Parametrics

ADSP-21160MKB-80 absolute maximum ratings: (1)Internal (Core) Supply Voltage: –0.3 V to +3.0 V; (2)Analog (PLL) Supply Voltage: –0.3 V to +3.0 V; (3)External (I/O) Supply Voltage: –0.3 V to +4.6 V; (4)Input Voltage: –0.5 V to VDDEXT+0.5 V; (5)Output Voltage Swing: –0.5 V to VDDEXT+0.5 V; (6)Load Capacitance: 200 pF; (7)Storage Temperature Range:–65℃ to +150℃; (8)Lead Temperature (5 seconds): 185℃.

Features

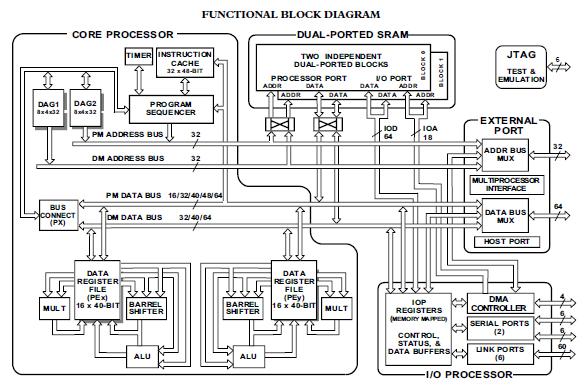

ADSP-21160MKB-80 features: (1)High-Performance 32-Bit DSP—Applications in Audio, Medical, Military, Graphics, Imaging, and Communication; (2)Super Harvard Architecture—Four Independent Buses for Dual Data Fetch, Instruction Fetch, and Nonintrusive, Zero-Overhead I/O; (3)Backwards-Compatible—Assembly Source Level Compatible with Code for ADSP-2106x DSPs; (4)Single-Instruction-Multiple-Data (SIMD) Computational Architecture—Two 32-Bit IEEE Floating-Point Computation Units, Each with a Multiplier, ALU, Shifter, and Register File; (5)Integrated Peripherals—Integrated I/O Processor, 4M Bit On-Chip Dual-Ported SRAM, Glueless Multiprocessing Features, and Ports (Serial, Link, External Bus, and JTAG).
