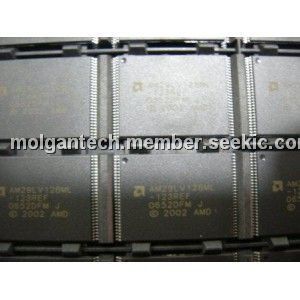

AM29LV128ML123REF

128 Mbit, single power supply flash memory device, SSOP, –0.5 V to +4.0 V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $10.00~20.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $10.00~20.00

PartNumber:: AM29LV128ML123REF

Brand:: Advanced Micro Devices - AMD | Pack: SSOP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Olin,Ms Stiny's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-02

From Other Seller

Part Number:AM29LV128ML123REF
US $10.00 - 20.00
IRF3205

US $0.80 - 2.50 / Piece
(0) Remove
DAD1000

US $2.50 - 3.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AM29LV128ML123REF is a 128 Mbit, 3.0 volt single power supply flash memory device organized as 8,388,608 words or 16,777,216 bytes. The device has a 16-bit wide data bus that can also function as an 8-bit wide data bus by using the BYTE# input. The AM29LV128ML123REF can be programmed either in the host system or in standard EPROM programmers.

Parametrics

AM29LV128ML123REF absolute maximum ratings: (1)Storage Temperature, Plastic Packages: –65 to +150℃; (2)Ambient Temperature with Power Applied: –65 to +125℃; (3)Voltage with Respect to Ground, VCC: –0.5 V to +4.0 V; VIO:–0.5 V to +4.0 V; (4)A9, OE#, ACC, and RESET#: –0.5 V to +12.5 V; All other pins: –0.5 V to VCC +0.5 V; (5)Output Short Circuit Current: 200 mA.

Features

AM29LV128ML123REF features: (1)Program Suspend & Resume: read other sectors before programming operation is completed; (2)Erase Suspend & Resume: read/program other sectors before an erase operation is completed; (3)Data# polling & toggle bits provide status; (4)Unlock Bypass Program command reduces overall multiple-word or byte programming time ; (5)CFI (Common Flash Interface) compliant: allows host system to identify and accommodate multiple flash devices; (6)Sector Group Protection: hardware-level method of preventing write operations within a sector group; (7)Temporary Sector Group Unprotect: VID-level method of changing code in locked sector groups; (8)WP#/ACC input accelerates programming time (when high voltage is applied) for greater throughput during system production. Protects first or last sector regardless of sector protection settings; (9)Hardware reset input (RESET#) resets device; (10)Ready/Busy# output (RY/BY#) detects program or erase cycle completion.
