Product Summary

The AN5215 is an integrated circuit designed for TV reciever sound-IF amplifier and M detector, and also is usable for TV sound multiplex broadcasting.

Parametrics

AN5215 absolute maximum ratings: (1)Supply voltage: 14.4V; (2)Circuit current: 36mA; (3)Power Dissipation: 520mW; (4)Operating ambient temperature: -20℃ to 70℃; (5)Storage temperature: -55℃ to +150℃.

Features

AN5215 features: (1)High input sensitivity: Vi=50μVrms typ; (2)Usable as sound multiplex circuitry; (3)Good FM Detector characteristics; (4)7-pin single-in-line plastic package for flexible PCB design.

Diagrams

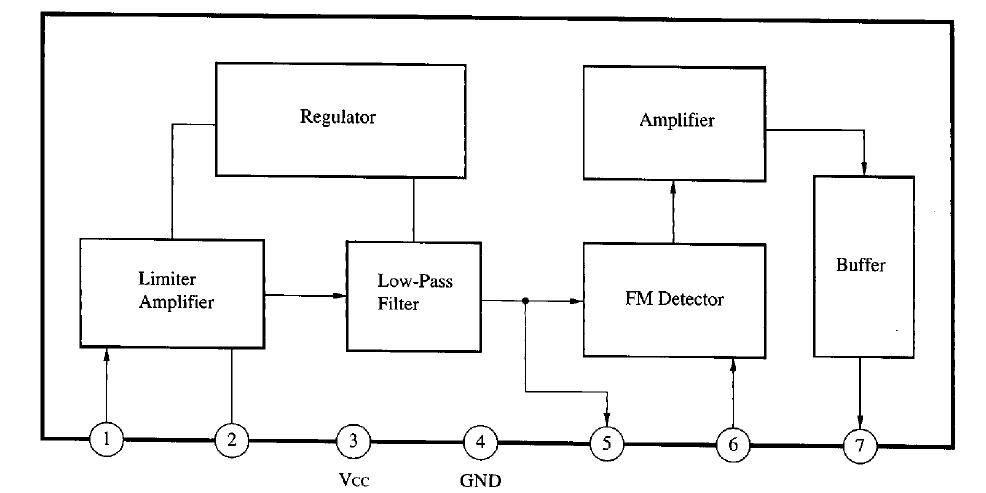

AN5215 block diagram
