Product Summary

The BH1418KN-E2 is a FM stereo transmitter IC for audio systems.

Parametrics

BH1418KN-E2 absolute maximum ratings: (1)Supply Voltage: +7.0V; (2)Data input voltage: -0.3V to VCC+0.3V; (3)Phase comparator output voltage: -0.3V to VCC+0.3V; (4)Power Dissipation: 370mW; (5)Storage temperature: -55℃ to +125℃.

Features

BH1418KN-E2 features: (1)It is possible to attempt to improve a timbre because it has the pre-emphasis circuit, limiter circuit and low-pass filter circuit; (2)Built-in the pilot-tone system FM stereo modulator circuit; (3)The transmission frequency is stable because it has PLL system FM transmitter circuit; (4)PLL data input (CE, CK, DA) by serial input; (5)It is possible for the monaural mode; (6)Built-in the sound muting circuit.

Diagrams

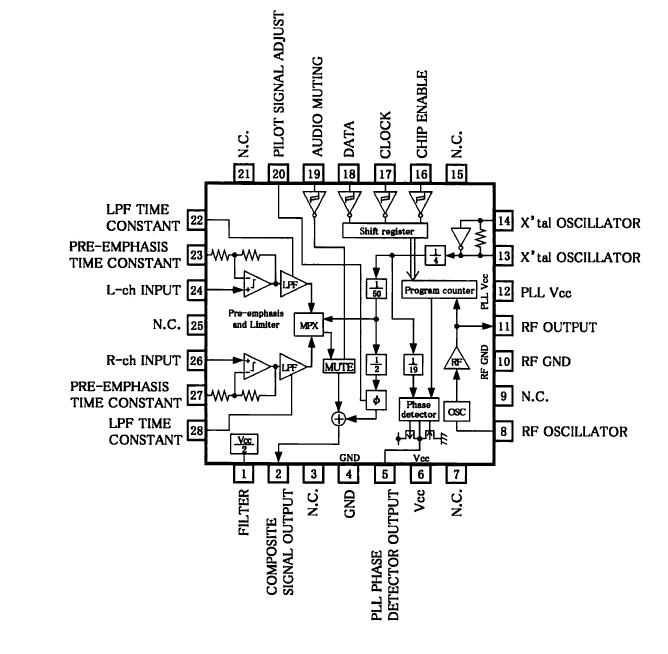

BH1418KN-E2 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

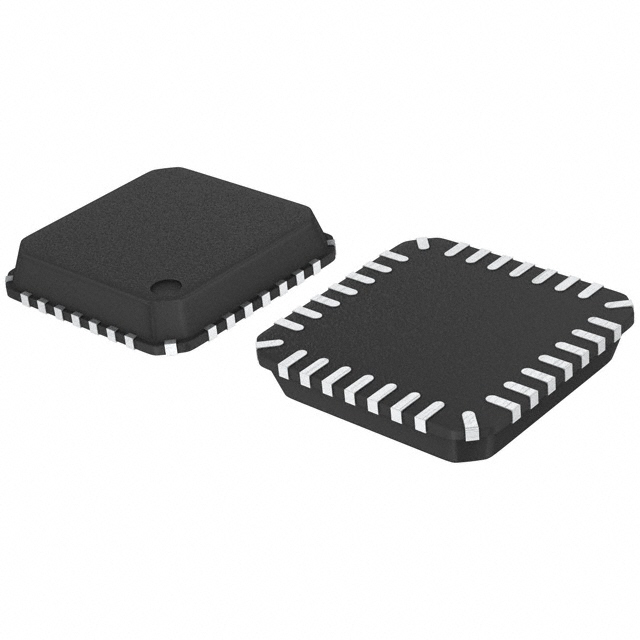

BH1418KN-E2
BH1418KN-E2
ROHM Semiconductor
Audio Amplifiers COMM LINK; 2.7V-4V
Data Sheet
0-2500: $3.42
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BH1415F-E2
BH1415F-E2
ROHM Semiconductor
Audio Amplifiers COMMUNICATION LINK
Data Sheet
0-1: $5.75
1-25: $4.55
25-100: $3.56
100-500: $3.30

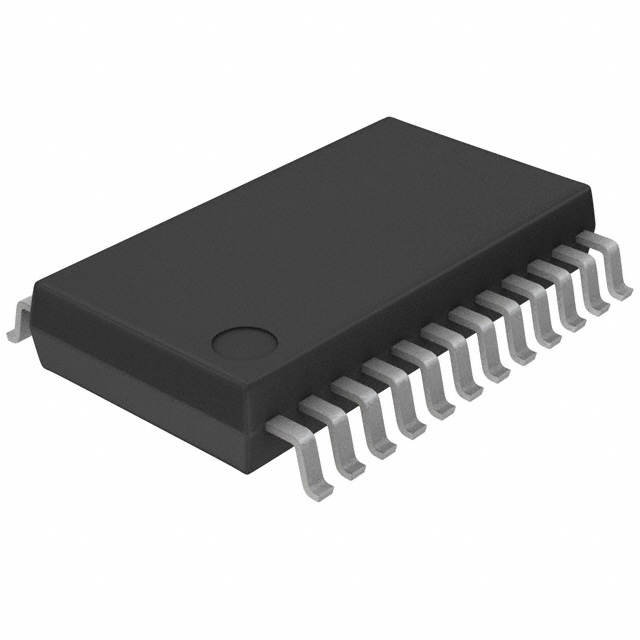

BH1415FV-E2
BH1415FV-E2
ROHM Semiconductor
RF Transmitter FM STEREO TRANSMITTR 24PIN
Data Sheet
0-2000: $3.49
BH1417F-E2
BH1417F-E2
ROHM Semiconductor
Audio Amplifiers COMMUNICATION LINK
Data Sheet
0-1: $5.75
1-25: $4.50
25-100: $3.52
100-500: $3.30
BH1418KN-E2
BH1418KN-E2
ROHM Semiconductor
Audio Amplifiers COMM LINK; 2.7V-4V
Data Sheet
0-2500: $3.42
BH1416F-E2
BH1416F-E2
ROHM Semiconductor
RF Receiver COMMUNICATION LINK
Data Sheet
0-2000: $3.48
BH1417FV-E2
BH1417FV-E2
ROHM Semiconductor
RF Transmitter COMM FM STEREO RADIO TRANSMITTER
Data Sheet
0-2000: $3.49
