Product Summary
The CA3306M is a CMOS parallel (FLASH) analog-to-digital converter designed for applications demanding both low power consumption and high speed digitization. Digitizing at 15MHz, for example, requires only about 50mW. The CA3306M operates over a wide, full scale signal input voltage range of 1V up to the supply voltage. Power consumption is as low as 15mW, depending upon the clock frequency selected. The CA3306M may be directly retrofitted into CA3300 sockets, offering improved linearity at a lower reference voltage and high operating speed with a 5V supply. The intrinsic high conversion rate makes the device ideally suited for digitizing high speed signals.
Parametrics
CA3306M absolute maximum ratings: (1)DC Supply Voltage Range, VDD Voltage Referenced to VSS Terminal: -0.5V to +8.5V; (2)Input Voltage Range All Inputs Except Zener: -0.5V to VDD + 0.5V; (3)DC Input Current CLK, PH, CE1, CE2, VIN: ±20mA.
Features
CA3306M features: (1)CMOS Low Power with Video Speed (Typ): 70mW; (2)Parallel Conversion Technique; (3)Signal Power Supply Voltage: 3V to 7.5V; (4)15MHz Sampling Rate with Single 5V Supply; (5)6-Bit Latched Three-State Output with Overflow Bit; (6)Pin-for-Pin Retrofit for the CA3300.

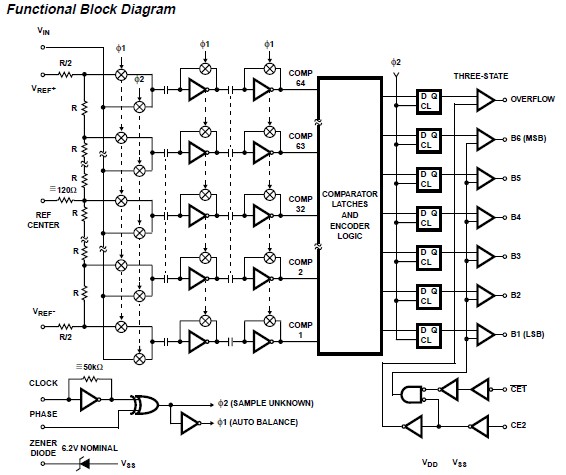

Diagrams
 |
