Product Summary
The EMIF06-MSD02N16 is a 6-line IPAD, EMI filter and ESD protection. It is designed to suppress EMI/RFI noise for interface line filtering. It is packaged in micro QFN. The EMIF06-MSD02N16 includes ESD protection circuitry, which prevents damage to the protected device when subjected to ESD surges. The applications of the EMIF06-MSD02N16 include: Mobile telephones, Navigation systems, Digital still cameras, Portable devices.
Parametrics
EMIF06-MSD02N16 absolute maximum ratings: (1)VPP ESD IEC 61000-4-2 Contact discharge on DATx_In, CMD_In and CLK_In pins: 2kV; On all other pins Contact discharge: 8kV; Air discharge: 12kV; (2)Tj Maximum junction temperature: 125 ℃; (3)Top Operating temperature range: - 30 to + 85 ℃; (4)Tstg Storage temperature range: - 55 to + 150 ℃.
Features
EMIF06-MSD02N16 features: (1)High design flexibility; (2)Lead free package; (3)Very low PCB space consumption: 3.5 mm × 1.2 mm; (4)Very thin package: 0.5 mm; (5)High efficiency in ESD suppression; (6)IEC 61000-4-2 level 4; (7)High reliability offered by monolithic integration; (8)High reduction of parasitic elements through integration and μQFN packaging.

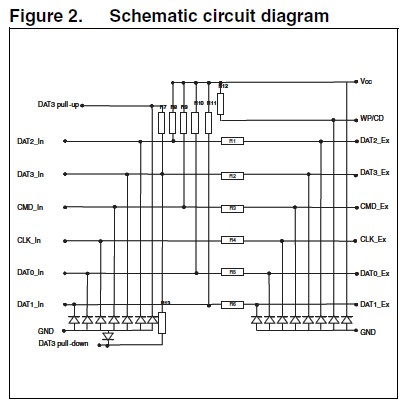

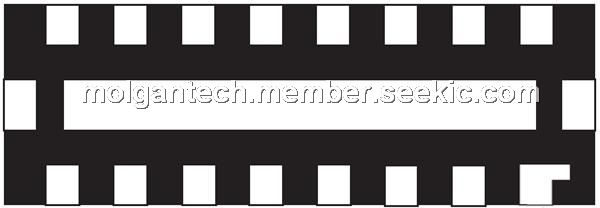

Diagrams
