Product Summary

The EP3C16Q240C8N is an FPGA. It is implemented in a system. It is rated according to a set of defined parameters. The EP3C16Q240C8N is offered in commercial, industrial, and automotive grades. Commercial devices are offered in –6 (fastest), –7, and –8 speed grades.

Parametrics

EP3C16Q240C8N absolute maximum ratings: (1)Supply voltage for internal logic:–0.5 to 1.8 V; (2)Supply voltage for output buffers:–0.5 to 3.9 V; (3)Supply voltage (analog) for phase-locked loop (PLL) regulator:-0.5 to 3.75 V; (4)Supply voltage (digital) for PLL:–0.5 to 1.8 V; (5)DC input voltage:–0.5 to 3.95 V; (6)DC output current, per pin:–25 to 40 mA; (7)Electrostatic discharge voltage using the human body model:±2000 V; (8)Electrostatic discharge voltage using the charged device model:±500 V; (9)Storage temperature:–65 to 150℃; (10)Operating junction temperature:–40 to 125℃.

Features

EP3C16Q240C8N features: (1)Input pin leakage current:-10uA to 10uA; (2)Tristated I/O pin leakage current:-10uA to 10uA; (3)VCCINT supply current (standby):3.0mA; (4)VCCA supply current (standby):11.4mA; (5)VCCD_PLL supply current (standby):8.2mA; (6)VCCIO supply current (standby):0.9mA.

Diagrams

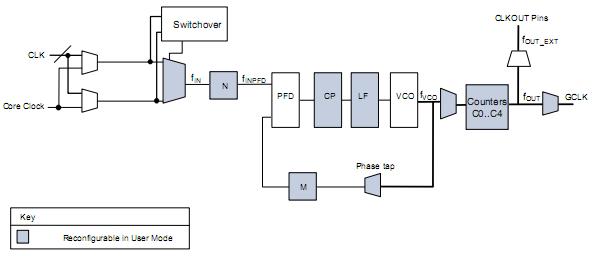

EP3C16Q240C8N block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
EP3C16Q240C8N
EP3C16Q240C8N


IC CYCLONE III FPGA 16K 240PQFP

Data Sheet

0-1: $17.46
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
EP3C10E144C7
EP3C10E144C7


IC CYCLONE III FPGA 10K 144-EQFP

Data Sheet

0-1: $13.86
EP3C10E144C7N
EP3C10E144C7N


IC CYCLONE III FPGA 10K 144-EQFP

Data Sheet

0-1: $13.86
EP3C10E144C8
EP3C10E144C8


IC CYCLONE III FPGA 10K 144-EQFP

Data Sheet

0-1: $11.52
EP3C10E144C8N
EP3C10E144C8N


IC CYCLONE III FPGA 10K 144-EQFP

Data Sheet

0-1: $11.52
EP3C10E144I7
EP3C10E144I7


IC CYCLONE III FPGA 10K 144 EQFP

Data Sheet

0-120: $16.86
EP3C10E144I7N
EP3C10E144I7N


IC CYCLONE III FPGA 10K 144 EQFP

Data Sheet

0-1: $17.28
