Product Summary
The EPF10K50EFC2563 is a Embedded Programmable Logic Device. Based on reconfigurable CMOS SRAM elements, the FLEX architecture incorporates all features necessary to implement common gate array megafunctions. With up to 200,000 typical gates, the EPF10K50EFC2563 provides the density, speed, and features to integrate entire systems, including multiple 32-bit buses, into a single device. The EPF10K50EFC2563 reconfigurability eliminates inventory management for gate array designs and generation of test vectors for fault coverage.
Parametrics
EPF10K50EFC2563 absolute maximum ratings: (1)Supply voltage:–0.5V to 3.6V or –0.5V to 4.6V; (2)DC input voltage:–2.0V to 5.75V; (3)DC output current:–25mA to 25mA; (4)Storage temperature:–65℃ to 150℃; (5)Ambient temperature:–65℃ to 135℃; (6)Junction temperature:135℃.
Features
EPF10K50EFC2563 features: (1)Individual tri-state output enable control for each pin; (2)Open-drain option on each I/O pin; (3)Programmable output slew-rate control to reduce switching noise; (4)Clamp to VCCIO user-selectable on a pin-by-pin basis; (5)Supports hot-socketing; (6)Enhanced embedded array for implementing megafunctions such as efficient memory and specialized logic functions ; (7)Dual-port capability with up to 16-bit width per embedded array block (EAB); (8)Logic array for general logic functions; (9)30,000 to 200,000 typical gates; (10)Up to 98,304 RAM bits (4,096 bits per EAB), all of which can be used without reducing logic capacity; (11)Dedicated cascade chain that implements high-speed, high-fan-in logic functions (automatically used by software tools and megafunctions); (12)Tri-state emulation that implements internal tri-state buses; (13)Up to six global clock signals and four global clear signals.

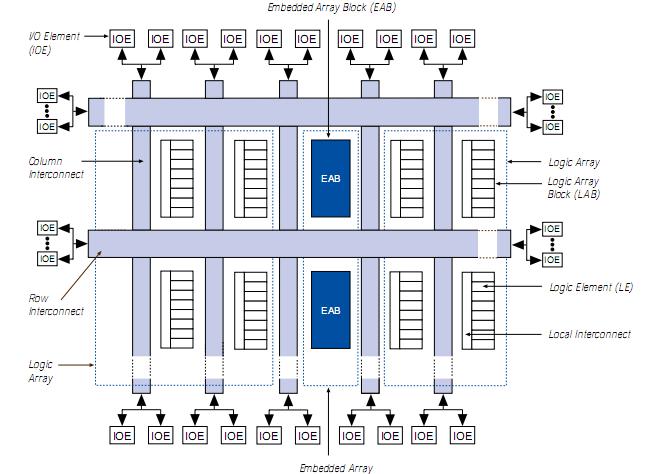

Diagrams
 |
