Product Summary

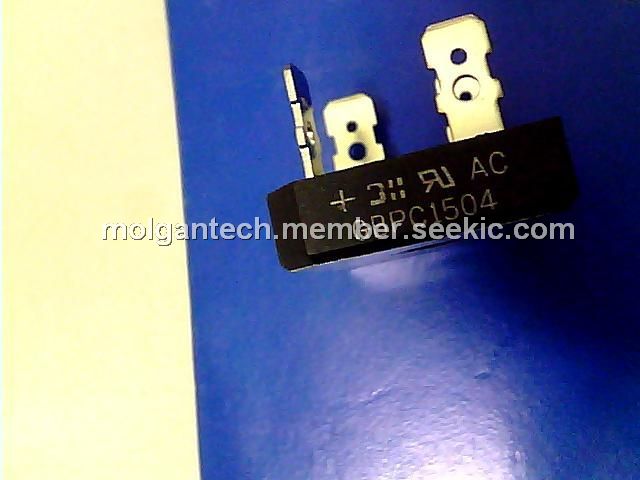

The GBPC1504 is the glass passivated single-phase bridge rectifier.

Parametrics

GBPC1504 absolute maximum ratings: (1)Maximum Average Forward Rectified Current (SEE FIG.1) at TC=55℃: 15 Amps; (2)Peak Forward Surge Current, 8.3mS single half sine wave superimposed on rated load (JEDEC method): 300 Amps; (3)Rating for Fusing (t＜8.3ms): 375 A2s; (4)Maximum Instantaneous Forward Voltage drop Per Bridge element 7.5A : 1.1 Volts; (5)Isolation Voltage from case to lug or lead: 2500 nS; (6)Typical Junction Capacitance per leg (NOTE 1): 300 pF; (7)Typical Thermal Resistance per leg (NOTE 2): 1.9 ℃/W; (8)Operating Junction Temperature: -55 to +150 ℃; (9)Maximum Repetitive Peak Reverse Voltage: 400V; (10)Maximum RMS Voltage: 280V; (11)Maximum DC Blocking Voltage: 400V.

Features

GBPC1504 features: (1)Plastic package has UL flammability classification 94V-0; (2)Integrally molded heatsink provides very low thermal resistance for maximum heat dissipation; (3)High forward surge capacity; (4)Glass passivated chip junction; (5)High isolation voltage from case to lugs; (6)High temperature soldering guaranteed: 260℃/10 seconds; (7)A vailable in either lug package (GBPC5005) or wire lead package (GBPC15005W).

Diagrams

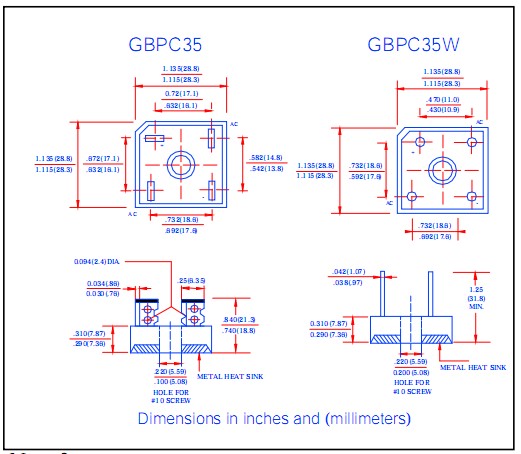

GBPC1504 diemnsions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
GBPC1504
GBPC1504
Fairchild Semiconductor
Bridge Rectifiers 15A Bridge Rectifer
Data Sheet
0-1: $1.70
1-25: $0.99
25-100: $0.74
100-250: $0.72
GBPC1504_Q
GBPC1504_Q
Fairchild Semiconductor
Bridge Rectifiers 15A Bridge Rectifer
Data Sheet
Negotiable
GBPC1504-E4/51
GBPC1504-E4/51
Vishay Semiconductors
Bridge Rectifiers 400 Volt 15 Amp Glass Passivated
Data Sheet
0-1: $3.20
1-25: $2.93
25-50: $2.66
50-100: $2.40
GBPC1504T/W
GBPC1504T/W
GeneSiC Semiconductor
Bridge Rectifiers 400V 15A Bridge Rectifier
Data Sheet
0-200: $1.46
200-250: $1.25
250-500: $1.09
500-1000: $1.06
GBPC1504M
GBPC1504M
Taiwan Semiconductor
Bridge Rectifiers 15 Amp 400 Volt 300 Amp IFSM
Data Sheet
0-200: $1.27
200-500: $1.01
500-1000: $0.91
1000-2500: $0.81
GBPC1504-G
GBPC1504-G

RECTIFIER BRIDGE 15A 400V GBPC
Data Sheet
0-1000: $0.76
GBPC1504W-E4/51
GBPC1504W-E4/51
Vishay Semiconductors
Bridge Rectifiers 15 Amp 400 Volt
Data Sheet
0-1: $1.60
1-25: $1.32
25-50: $1.29
50-100: $1.15
GBPC1504W
GBPC1504W
Fairchild Semiconductor
Bridge Rectifiers 15A Bridge Rectifer
Data Sheet
0-1: $1.70
1-25: $1.42
25-100: $0.92
100-250: $0.72
