Product Summary
The IDT70V3569S4BF8 is a high-speed 16Kx36 bit synchronous Dual-Port RAM. The memory array utilizes Dual-Port memory cells to allow simultaneous access of any address from both ports. Registers on control, data, and address inputs provide minimal setup and hold times. The timing latitude of IDT70V3569S4BF8 provided by this approach allows systems to be designed with very short cycle times. With an input data register, the IDT70V3569S4BF8 has been optimized for applications having unidirectional or bidirectional data flow in bursts. An automatic power down feature, controlled by CE0 and CE1, permits the on-chip circuitry of each port to enter a very low standby power mode.
Parametrics
IDT70V3569S4BF8 absolute maximum ratings: (1)VTERM, Terminal Voltage with Respect to GND: -0.5 to +4.6V; (2)TBIAS, Temperature Under Bias: -55 to +125℃; (3)TSTG, Storage Temperature: -65 to +150℃; (4)IOUT, DC Output Current: 50mA.
Features
IDT70V3569S4BF8 features: (1)True Dual-Port memory cells which allow simultaneous access of the same memory location; (2)High-speed clock to data access; (3)Pipelined output mode; (4)Counter enable and reset features; (5)Dual chip enables allow for depth expansion without additional logic; (6)Full synchronous operation on both ports; (7)Separate byte controls for multiplexed bus and bus matching compatibility; (8)Industrial temperature range (-40℃ to +85℃) is available for selected speeds; (9)Available in a 208-pin Plastic Quad Flatpack (PQFP), 208-ball fine-pitch Ball Grid Array, and 256-pin Ball Grid Array.

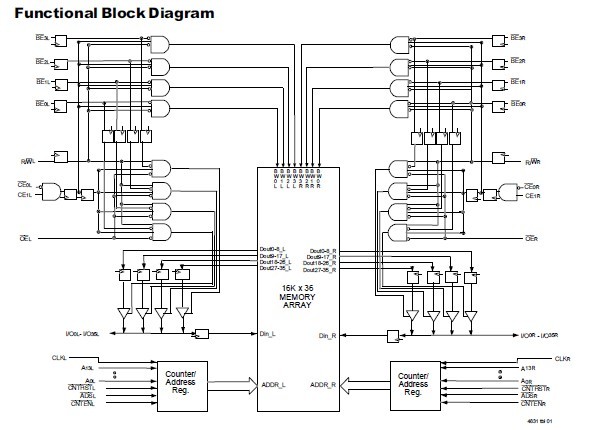

Diagrams
