Product Summary

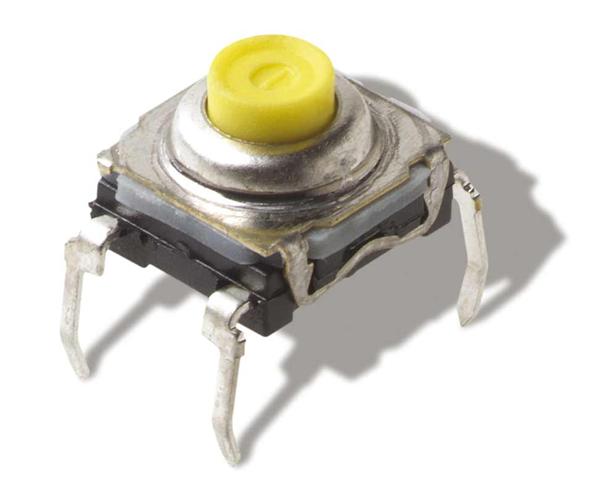

The KSL1M411 is a Sealed Tact Switch. The applications of the KSL1M411 include Automotive, Industrial, Telecommunication networks.
Parametrics
KSL1M411 absolute maximum ratings: (1)maximum power: 1VA, 0.2VA; (2)maximum voltage: 32VDC, 32VDC; (3)minimum voltage: 20mV; (4)maximum current: 50mA, 10mA; (5)minimum current: 1mA; (6)dielectric strength: 300Vrms; (7)contact resistance: ＜100mΩ; (8)insulation resistance (100V): ＞10°Ω; (9)bounce time: ＜1ms; (10)operating temperature: -40℃ to 90℃, -40℃ to 125℃; (11)storage temperature: -40℃ to 90℃, -55℃ to 125℃.
Features
KSL1M411 features: (1)Designed for automatic or manual insertion; (2)Cambered terminals to ensure self retention; (3)Top or side actuated; (4)Large choice of caps; (5)RoHS compliant and compatible.

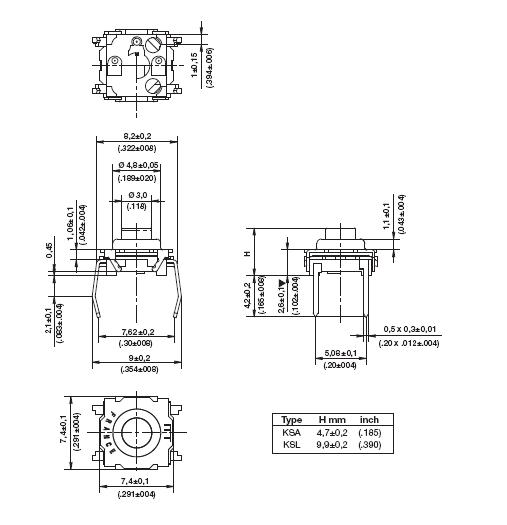

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 KSL1M411 |
C&K Components |
Tactile & Jog Switches SPST-NO VERT 300g |
Data Sheet |
|
|
||||||||||||
|
KSL1M411LFT |
C&K Components |
Tactile & Jog Switches SPST Rnd Bttn PC 0.05A 32VDC 1W |
Data Sheet |
|
|
||||||||||||
