Product Summary

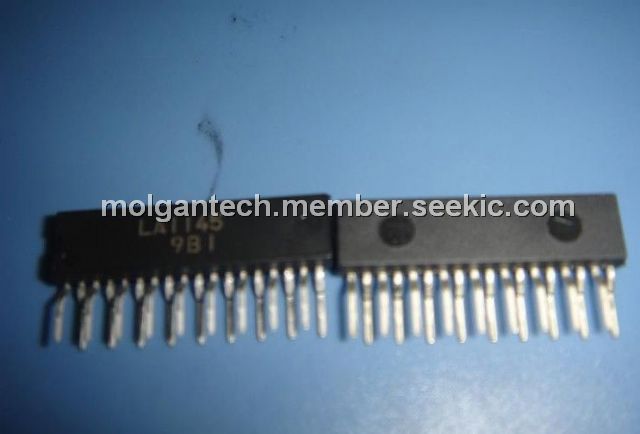

The LA1145 is a FM IF System (Quadrature Detector) for Car Radio.

Parametrics

LA1145 absolute maximum ratings: (1)Maximum supply voltage, VCC max: 14 V; (2)Maximum supply current, ICC max: 45 mA; (3)Allowable power dissipation, Pd max: 630 mW; (4)Operating temperature, Topr: –20 to +70℃; (5)Storage temperature, Tstg: –40 to +150℃.

Features

LA1145 features: (1)On-chip IF count buffer circuit and microprocessor-controlled switch circuit for ETR; (2)Compared to the LA1140, the LA1145, 1145M offer: Improved signal meter output linearity; Improved band mute temperature stability; Improved S/N ratio; Improved sound quality at weak signal input when noise is present, and Improved AMR characteristics during weak signal input; (3)Reduced parts’ count simplifies design: On-chip IF count buffer circuit; On-chip SD circuit — sensitivity can be set independently of soft mute characteristics, and; Variable S-meter gradient — three pin S-meter output (pins 5, 16 and 17) facilitates independent control of SNC and HCC.

Diagrams

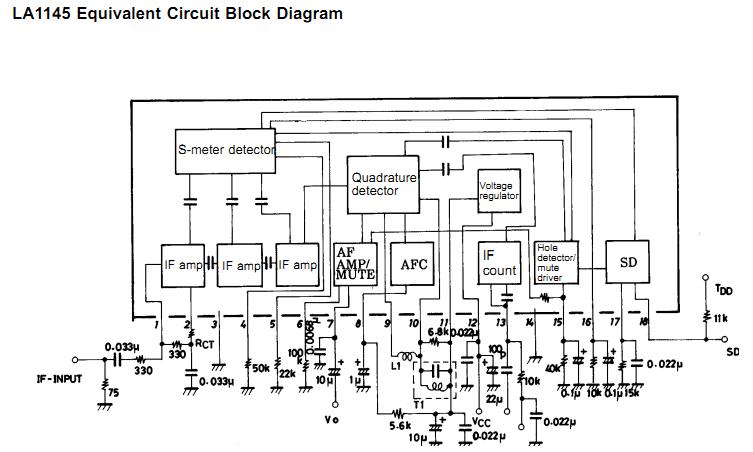

LA1145 Equivalent Circuit Block Diagram
