Product Summary
The MAAMSS0014 RF driver amplifier is a GaAs MMIC which exhibits excellent ACPR performance as well as high gain and low power consumption in a low-cost SOT-89 surface mount plastic package. The MAAMSS0014 employs a monolithic single stage design featuring a convenient 50-ohm input/output impedance. This device runs off a single +5 volt supply and draws 110 mA typically. The design provides excellent performance from 500 to 2400 MHz. The MAAMSS0014 is fabricated using M/A-COM iHBT process to realize low current and high power functionality. The process features full passivation for increased performance and reliability.
Parametrics
MAAMSS0014 absolute maximum ratings: (1)RF Input Power: 500 MHz: 0 dBm; 900 MHz: 2 dBm; 1900 MHz: 4 dBm; (2)Voltage: 6.0 volts; (3)Operating Temperature: -40℃ to +85℃; (4)Storage Temperature: -65℃ to +150℃.
Features
MAAMSS0014 features: (1)Low Cost Plastic SOT-89 Package; (2)Broadband Operation; (3)18 dBm POUT at -50 dBc ACPR; (4)24 dBm P1dB.

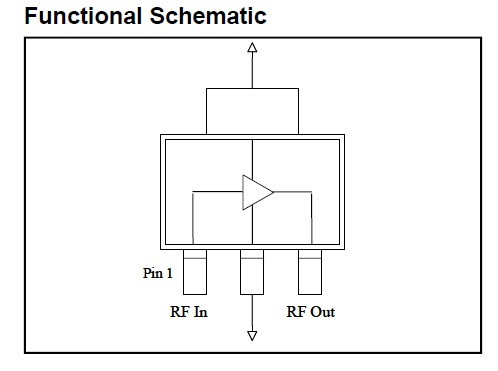

Diagrams
