Product Summary
The MAX5352AEPA is a kind of Low-Power, 12-Bit Voltage-Output DAC with Serial Interface, which combines a low-power, voltageoutput, 12-bit digital-to-analog converter (DAC) and a precision output amplifier in an 8-pin μMAX or DIP package. The MAX5352AEPA operates from a single +5V supply. The device draws less than 280μA of supply current. The output amplifier inverting input is available to the user, allowing specific gain configurations, remote sensing, and high output current capability. This makes the MAX5352AEPA ideal for a wide range of applications, including industrial process control. Other features include a software shutdown and power-on reset.The typical applications of MAX5352AEPA include:(1)Industrial Process Controls; (2)Automatic Test Equipment; (3)Digital Offset and Gain Adjustment; (4)Motion Control; (5)Remote Industrial Controls; (6)Microprocessor-Controlled Systems.
Parametrics
MAX5352AEPA absolute maximum ratings: (1)VDD to GND: -0.3V, +6V; (2)REF, OUT, FB to GND: -0.3V to (VDD + 0.3V); (3)Digital Inputs to GND: -0.3V to +6V; (4)Continuous Current into Any Pin: ±20mA; (5)Continuous Power Dissipation (TA = +70℃): Plastic DIP (derate 9.09mW/℃ above +70℃): 727mW; (6)Operating Temperature Range: -40℃ to +85℃; (7)Storage Temperature Range: -65℃ to +150℃; (8)Lead Temperature (soldering, 10sec): +300℃.
Features
MAX5352AEPA features: (1)12-Bit DAC with Configurable Output Amplifier; (2)+5V Single-Supply Operation (MAX5352); +3.3V Single-Supply Operation (MAX5353); (3)Low Supply Current: 0.28mA Normal Operation; 2μA Shutdown Mode; (4)Available in 8-Pin μMAX; (5)Power-On Reset Clears DAC Output to Zero; (6)SPI/QSPI and Microwire Compatible; (7)Schmitt-Trigger Digital Inputs for Direct Optocoupler Interface; (8)+3.3V MAX5353 Directly Interfaces with +5V Logic.

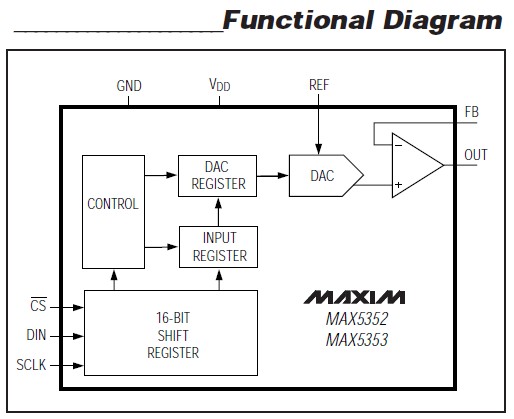

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MAX5352AEPA |
Maxim Integrated Products |
DAC (D/A Converters) |
Data Sheet |
Negotiable |
|
|||||||||||
MAX5352AEPA+ |
Maxim Integrated Products |
DAC (D/A Converters) 12-Bit Precision DAC |
Data Sheet |
|
|
