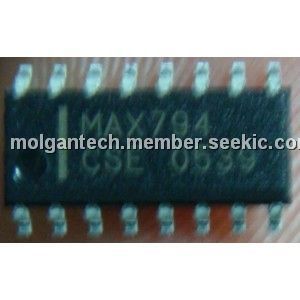

MAX794CSE-T

3.0V/3.3V, adjustable microprocessor supervisory circuit, MPU, 16-SOIC, -0.3V to 6.0V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.00~5.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.00~5.00

PartNumber:: MAX794CSE-T

Brand:: Maxim Integrated Products - Maxim | Pack: SOIC | D/C: 05+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Olin,Ms Stiny's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-09-16

From Other Seller

Part Number:MAX794CSE-T
US $2.00 - 5.00
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The MAX794CSE-T microprocessor (μP) supervisory circuits monitor and control the activities of +3.0V/+3.3V μPs by providing backup-battery switchover, among other features such as low-line indication, μP reset, write protection for CMOS RAM, and a watchdog (see the Selector Guide below). The MAX794CSE-T is available in 16-pin DIP and narrow SO packages.

Parametrics

MAX794CSE-T absolute maximum ratings: (1)Terminal Voltage (with respect to GND) VCC: -0.3V to 6.0V; (2)Terminal Voltage (with respect to GND) VBATT: -0.3V to 6.0V; (3)All Other Inputs: -0.3V to the higher of VCC or VBATT; (4)Continuous Input Current VCC: 200mA; (5)Continuous Input Current VBATT: 50mA; (6)Continuous Input Current GND: 20mA; (7)Output Current VOUT: 200mA; (8)All Other Outputs: 20mA; (9)Power Dissipation (TA = +70℃), 16-Pin Narrow SO (derate 9.52mW/℃ above +70℃): 696mW; (10)Operating Temperature Ranges: 0℃ to +70℃; (11)Storage Temperature Range: -65℃ to +160℃; (12)Lead Temperature (soldering, 10sec): +300℃.

Features

MAX794CSE-T features: (1)Precision Supply-Voltage Monitor; (2)Guaranteed Reset Assertion to VCC = 1V; (3)Backup-Battery Power Switching—Battery Voltage Can Exceed VCC; (4)On-Board Gating of Chip-Enable Signals—7ns Max Propagation Delay; (5)Battery Freshness Seal; (6)Battery OK Output; (7)Uncommitted Voltage Monitor for Power-Fail or Low-Battery Warning; (8)Independent Watchdog Timer (1.6sec timeout); (9)Manual Reset Input.
