MCHC908JW32FCR

low-cost, high-performance, 8-bit microcontroller unit, –0.3 to +6.0 V, QFN48, 100 mA, 8-MHz internal bus frequency

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.00~10.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.00~10.00

PartNumber:: MCHC908JW32FCR

Brand:: Freescale Semiconductor, Inc - Freescale | Pack: QFN | D/C: 05+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Olin,Ms Stiny's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-09-18

From Other Seller

Part Number:MCHC908JW32FCR
US $2.00 - 10.00
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
SLA4060

US $0.80 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The MCHC908JW32FCR is a low-cost, high-performance 8-bit microcontroller unit (MCU). The MCHC908JW32FCR uses the enhanced M68HC08 central processor unit (CPU08) and are available with a variety of modules, memory sizes and types, and package types.

Parametrics

MCHC908JW32FCR absolute maximum ratings: (1)Supply voltage, VDD: –0.3 to +6.0 V; (2)Input voltage, All pins (except IRQ), VIN: VIN VSS–0.3 to VDD +0.3V; IRQ pin: VSS–0.3 to 8.5V; (3)Maximum current per pin excluding VDD and VSS, I: ±25 mA; (4)Maximum current out of VSS, IMVSS: 100 mA; (5)Maximum current into VDD, IMVDD: 100 mA; (6)Storage temperature, TSTG: –55 to +150℃.

Features

MCHC908JW32FCR features: (1)High-performance M68HC08 architecture; (2)Fully upward-compatible object code with M6805, M146805, and M68HC05 Families; (3)8-MHz internal bus frequency; (4)88-kHz internal RC clock for timebase wakeup; (5)32-Kbytes of on-chip FLASH memory with security; (6)1-Kbytes of on-chip random-access memory (RAM); (7)On-chip programming firmware for use with host PC computer; (8)Clock generation module (CGM); (9)Optional computer operating properly (COP) reset; (10)Optional low-voltage detection with reset; (11)Illegal opcode detection with reset; (12)Illegal address detection with reset。

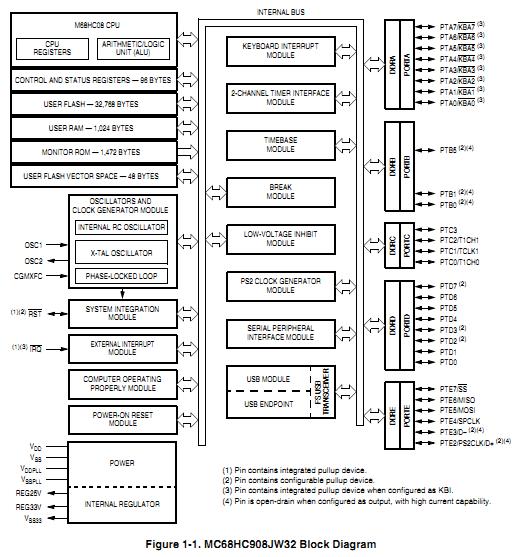

Diagrams
