Product Summary
The MIC29152BU is the 5A fast-response LDO regulator. The high-current, highaccuracy, low-dropout voltage regulators featuring fast transient recovery from input voltage surges and output load current changes. The MIC29152BU is available in the standard three and five pin TO-220 package with an operating junction temperature range of 0 to +125℃.
Parametrics
MIC29152BU absolute maximum ratings: (1)Input Supply Voltage(1): –20V to +60V; (2)Power Dissipation: Internally Limited; (3)Storage Temperature Range: –65℃ to +150℃; (4)Ambient Temperature Range (soldering, 5 sec.): 260℃; (5)Maximum Operating Input Voltage: 26V; (6)Operating Junction Temperature: –40 to +125℃.
Features
MIC29152BU features: (1)Fast transient response; (2)5A current capability; (3)700mV dropout voltage at full load; (4)Low ground current; (5)Accurate 1% guaranteed tolerance; (6)Zero current shutdown mode (MIC29512); (7)Fixed voltage and adjustable versions.

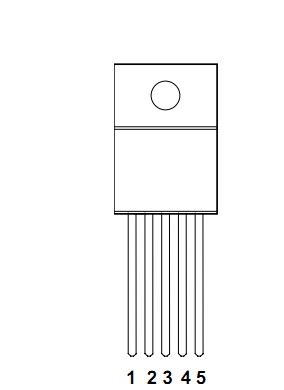

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

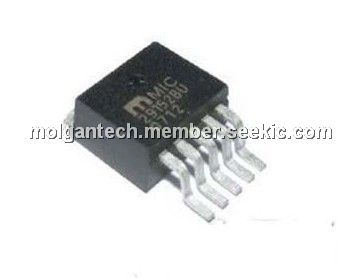

 MIC29152BU |
|
IC REG LDO ADJ 1.5A TO263-5 |
Data Sheet |
Negotiable |
|
||||
|
MIC29152BU TR |
|
IC REG LDO ADJ 1.5A TO263-5 |
Data Sheet |
Negotiable |
|
||||
