Product Summary

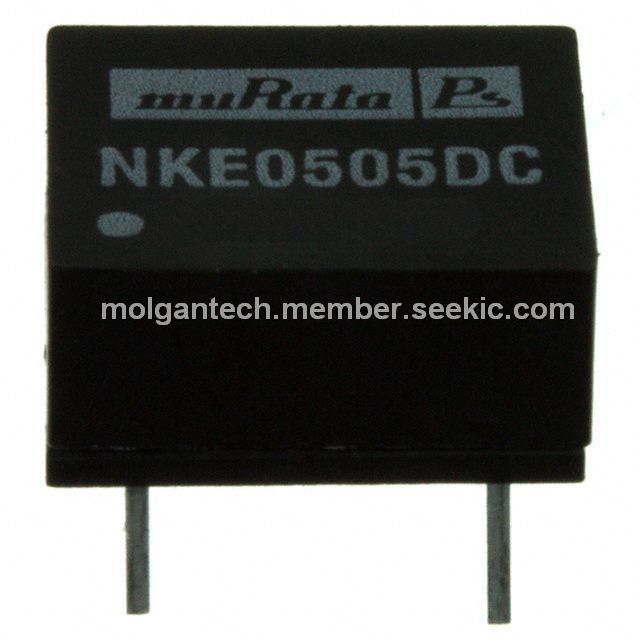

The NKE0505DC is an Isolated Sub-Miniature 1W Single Output DC/DC Converter. The NKE0505DC is particularly suited to isolating and/or converting DC power rails. A smaller package size, improved efficiency, lower output ripple and 3kVDC isolation capability through state of the art packaging and improved technology. The galvanic isolation allows the NKE0505DC to be configured to provide an isolated negative rail in systems where only positive rails exist. The wide temperature range guarantees startup from –40℃ and full 1 watt output at 85℃.

Parametrics

NKE0505DC absolute maximum ratings: (1)Lead temperature 1.5mm from case for 10 seconds: 300℃; (2)Internal power dissipation: 530mW; (3)Input voltage VIN, NKE03 types: 5.5V; (4)Input voltage VIN, NKE05 types: 7V; (5)Input voltage VIN, NKE12 types: 15V.

Features

NKE0505DC features: (1)RoHS Compliant; (2)Sub-Miniature SIP & DIP Styles; (3)3kVDC Isolation; (4)UL Recognised; (5)Wide Temperature performance at full 1 Watt load, -40℃ to 85℃; (6)Increased Power Density to 2.09W/cm3; (7)UL 94V-0 Package Material; (8)Footprint at 0.69cm2; (9)Industry Standard Pinout; (10)3.3V, 5V & 12V Input; (11)3.3V, 5V, 9V, 12V and 15V Output; (12)Internal SMD Construction; (13)Fully Encapsulated with Toroidal Magnetics; (14)MTTF up to 2.4 Million hours; (15)Custom Solutions Available; (16)No Electrolytic or Tantalum Capacitors.

Diagrams

NKE0505DC dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
NKE0505DC
NKE0505DC
Murata Power Solutions
DC/DC Converters 1W DUAL OUT 5-5V Single Output
Data Sheet
0-1: $4.57
1-5: $4.54
5-10: $4.51
10-25: $4.46
