Product Summary
The BAV70 is a high-speed double diode for high-speed switching in thick and thin-film circuits.
Parametrics
BAV70 absolute maximum ratings: (1)repetitive peak reverse voltage: 85 V max; (2)continuous reverse voltage: 75 V max; (3)ontinuous forward current: 215 mA max; (4)repetitive peak forward current: 450 mA max; (5)non-repetitive peak forward current: att = 1 us: 4 A; at t = 1 ms: 1 A; at t = 1 s: 0.5 A; (6)total power dissipation: 250 mW max; (7)storage temperature: -65 +150 ℃; (8)junction temperature: 150 ℃ max.
Features
BAV70 features: (1)Small plastic SMD package; (2)High switching speed: max. 4 ns; (3)Continuous reverse voltage: max. 70 V; (4)Repetitive peak reverse voltage: max. 75 V; (5)Repetitive peak forward current: max. 450 mA.

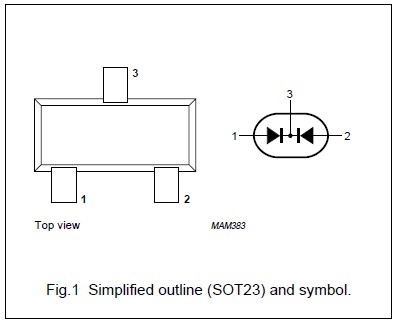

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BAV70 /T3 |
NXP Semiconductors |
Diodes (General Purpose, Power, Switching) DIODE SW TAPE-11 |
Data Sheet |
Negotiable |
|
||||||||||||
|
BAV70,215 |
NXP Semiconductors |
Diodes (General Purpose, Power, Switching) SW DBL 75V 215MA HS |
Data Sheet |
|
|
||||||||||||
|
BAV70,235 |
NXP Semiconductors |
Diodes (General Purpose, Power, Switching) DIODE SW TAPE-11 |
Data Sheet |
|
|
||||||||||||
 |
BAV70_L99Z |
Fairchild Semiconductor |
Rectifiers 70V 200mA |
Data Sheet |
Negotiable |
|
||||||||||||
|
BAV70_Q |
Fairchild Semiconductor |
Rectifiers 70V 200mA |
Data Sheet |
Negotiable |
|
||||||||||||
|
BAV70_S00Z |
Fairchild Semiconductor |
Rectifiers High Conductance Ultra Fast |
Data Sheet |
Negotiable |
|
||||||||||||
 |
BAV70-7 |
Diodes Inc. |
Diodes (General Purpose, Power, Switching) 70V 350mW |
Data Sheet |
Negotiable |
|
||||||||||||
|
BAV70-7-F |
Diodes Inc. |
Diodes (General Purpose, Power, Switching) 70V 350mW |
Data Sheet |
|
|
||||||||||||
