Product Summary
The PE3236-21 is a high performance integer-N PLL capable of frequency synthesis up to 2.2 GHz.
Parametrics
PE3236-21 absolute maximum ratings: (1)Supply voltage:-0.3V to 4.0V ; (2)Voltage on any input:-0.3V to VDD+0.3V ; (3)DC into any input:-10mA to +10mA ; (4)DC into any output:-10mA to +10mA ; (5)Storage temperature range:-65℃ to 150℃.
Features
PE3236-21 features: (1)2.2 GHz operation ; (2)10/11 dual modulus prescaler ; (3)Internal phase detector ; (4)Serial, parallel or hardwired programmable ; (5)Low power:22 mA at 3 V ; (6)Q3236 PLL replacement ; (7)Ultra-low phase noise.

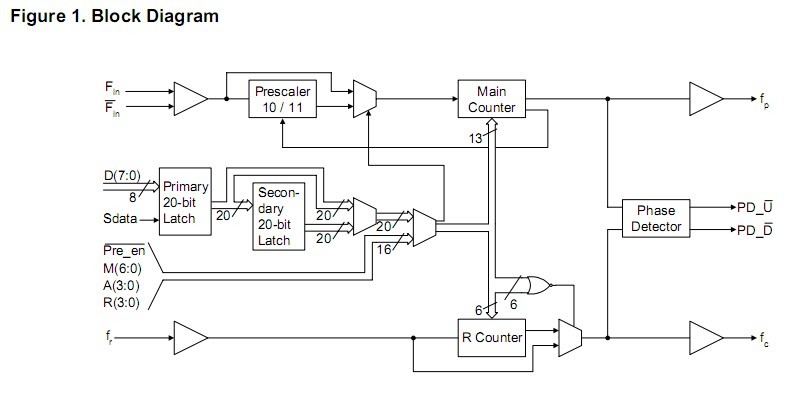

Diagrams
 |
