Product Summary
The SC14424BVJG is a Complete Baseband Processor for DECT Base Stations. An ADPCM transcoder, a very low power CODEC and Analog Frontend are integrated. Direct connections towards analog or ISDN line interface. The SC14424BVJG is designed to be compatible with many radio interfaces. A dedicated TDMA controller handles all physical layer slot formats and radio control.
Features
SC14424BVJG features: (1)Integrated DECT base band transceiver optimized for GAP base stations according to ETS 300 175-2, 175-3 & 175-8; (2)3.0 to 5.5 Volt operating voltage; (3)Embedded 16 bit CompactRISCTM CR16A Microprocessor with In System Emulation (ISE) mode; (4)2k + 4kbyte Data Memory; (5)Two full duplex 32 kbits/sec ADPCM transcoder; (6)14-bit linear CODEC with programmable gain; (7)Serial interface to external codecs and ISDN interface circuits.; (8)Echo canceller, two echo suppressors, DTMF generator, sidetone and artificial echo loss; (9)On-chip gaussian Modulator; (10)Peak hold ADC for RSSI measurement; (11)Three input 8 bit successive approximation ADC; (12)On board programmable Dedicated Instruction Processor (DIP) for all TDMA based events; (13)Protected and unprotected half, full and double slot Bfields D00, D08, D32 and D80; (14)Standard DECT encryption with different keys for different MAC-connections; (15)6 MAC connections can be handled simultaneously; (16)Flexible three wire interface to radio front synthesizer; (17)Three general purpose I/O ports with programmable interrupts; (18)General purpose full duplex UART.; (19)SPITM and MICROWIRETM interfaces; (20)Two general purpose timers and watchdog timer; (21)Programmable chip selects to 8 bit wide ROM, SRAM NAND Flash Memory and I/O expanders; (22)Capture timer for frequency measurement for e.g. metering, ringing and call progress tone detection; (23)100 pin TQFP-100 package.

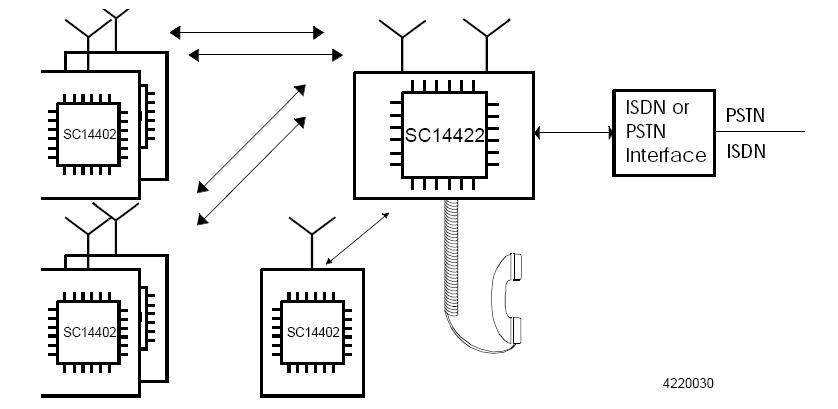

Diagrams
 |
