Product Summary
The SKM75GB128DE is a SPT IGBT Module.
Parametrics
SKM75GB128DE absolute maximum ratings: (1)VCES: 1200V; (2)IC: 100A; (3)ICRM: 100A; (4)VGES: ±20V; (5)tpsc: 10μS; (6)IF: 75A; (7)IFRM: 100A; (8)IFSM: 550A; (9)It: 200A; (10)Tvj: -40 to 150℃; (11)Tstg: -40 to 125℃; (12)Visol: 4000V.
Features
SKM75GB128DE features: (1)SPT=Soft-Punch-Through technology; (2)VCE with positive temperature coefficient; (3)High short circuit capability, self limiting to 6IC.

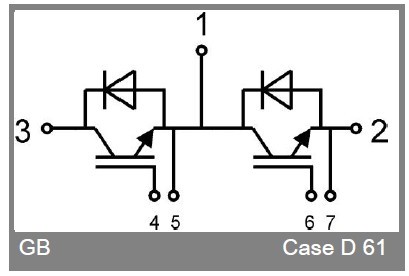

Diagrams
 |
