Product Summary
The STB5600TR is a GPS RF FRONT-END IC. The STB5600TR, using STMicroelectronics HSB2, High Speed Bipolar technology, implements a Global Positioning System RF front-end. The STB5600TR provides down conversion from the GPS (L1) signal at 1575 MHz via an IF of 20MHz to an output frequency of 4MHz suitable for ST20GP1 GPS processor. It uses a single external reference oscillator to generate both RF local oscillator signals and the processor reference clock.
Parametrics
STB5600TR absolute maximum ratings: (1)VCC DC Supply Voltage: 5.9V; (2)RF+, RF- RF Input: 8dBm; (3)Tj Junct ion Temperature: 150℃; (4)Tstg Storage Temperature Range: -40℃ to 125℃; (5)Rthj-amb Thermal Resistance Junction-ambient: 80℃/W.
Features
STB5600TR features: (1)one chip system to interface active antenna to ST20GP1 microcontroller; (2)complete receiver using novel dual conversion architecture with; (3)single IF filter; (4)minimum external components; (5)compatible with GPS l1 SPS signal; (6)internally stabilized power rails; (7)CMOS output levels; (8)FROM 3.3 TO 5.9V supply voltage; (9)TQFP32 package.

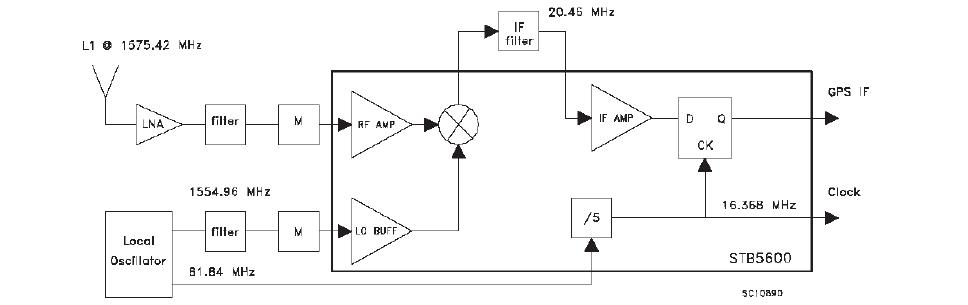

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 STB5600TR |
STMicroelectronics |
RF Wireless Misc GPS Front-End |
Data Sheet |
Negotiable |
|
||||||||||||
