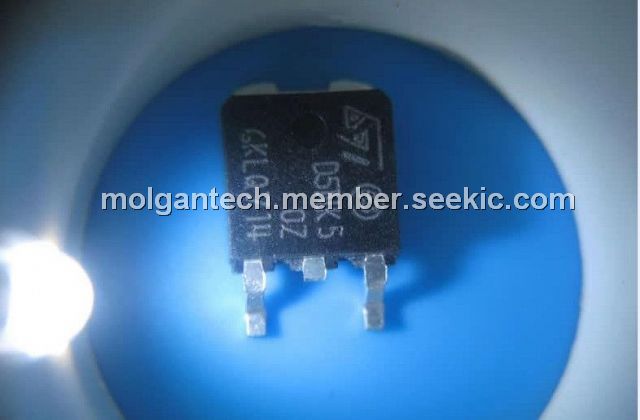

STD5NK50Z

Power MOSFET, 500 V, 17.6A, 1.22 Ω, extremely high dv/dt capability, avalanche tested

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.20~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.20~0.50

PartNumber:: STD5NK50Z

Brand:: STMicroelectronics - ST | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Olin,Ms Stiny's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-01

From Other Seller

Part Number:STD5NK50Z
US $0.20 - 0.50
FM31256-G

US $2.40 - 4.20 / Piece
(0) Remove
SIL9030CTU

US $2.50 - 5.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

The STD5NK50Z is a Power MOSFET. The STD5NK50Z is obtained through an extreme optimization of ST’s well established strip-based PowerMESH layout. In addition to pushing on-resistance significantly down, special care is taken to ensure a very good dv/dt capability for the most demanding applications. Such series complements ST full range of high voltage MOSFETs including revolutionary MDmesh products. The STD5NK50Z is suitable for high current, high speed switching, ideal for off-line power supplies, adaptors and pfc and lighting.

Parametrics

STD5NK50Z absolute maximum ratings: (1)VDS, Drain-source Voltage (VGS =0): 500 V; (2)VDGR, Drain-gate Voltage (RGS =20kΩ): 500 V; (3)VGS, Gate- source Voltage: ± 30 V; (4)ID, Drain Current (continuous) at TC = 25℃: 4.4A; (5)ID, Drain Current (continuous) at TC = 100℃: 2.7A; (6)IDM, Drain Current (pulsed): 17.6A; (7)PTOT, Total Dissipation at TC = 25℃: 70W; (8)Derating Factor: 0.56 W/℃; (9)VESD(G-S) Gate source ESD(HBM-C=100pF, R=1.5KΩ): 3000 V; (10)dv/dt, Peak Diode Recovery voltage slope: 4.5 V/ns; (11)Tj,Tstg, Operating Junction Temperature and Storage Temperature: -55to150℃.

Features

STD5NK50Z features: (1)typical RDS(on) = 1.22 Ω; (2)extremely high dv/dt capability; (3)100% avalanche tested; (4)gate charge minimized; (5)very low intrinsic capacitances; (6)very good manufacturing repeatibility.
