Product Summary
The SY88803VKI is a low power limiting post amplifier designed for use in fiber-optic receivers. The SY88803VKI connects to typical transimpedance amplifiers (TIAs). The linear signal output from TIAs can contain significant amounts of noise and may vary in amplitude over time. The SY88803VKI quantizes these signals and outputs PECL level waveforms. The applications of the device include 155Mbps SONET/SDH, Small form factor transceivers and High-gain line driver and line receiver.
Parametrics
SY88803VKI absolute maximum ratings: (1)Supply Voltage (VCC): 0V to +7.0V; (2)Input Voltage (DIN, /DIN): 0 to VCC; (3)Output Current (IOUT), Continuous: 50mA; Surge: 100mA; (4)/EN Voltage: 0 to VCC; (5)VREF Current: –800μA to +500μA; (6)LOSLVL Voltage: 0 to VCC; (7)Storage Temperature (TS): –55 to +125℃.
Features
SY88803VKI features: (1)Single 3.3V or 5V power supply; (2)Up to 155Mbps operation; (3)Low noise PECL data outputs; (4)Chatter-free TTL Loss-of-Signal (LOS) output; (5)TTL /EN input; (6)Programmable LOS level set (LOSLVL); (7)Available in a tiny 10-pin MSOP (3mm) package.

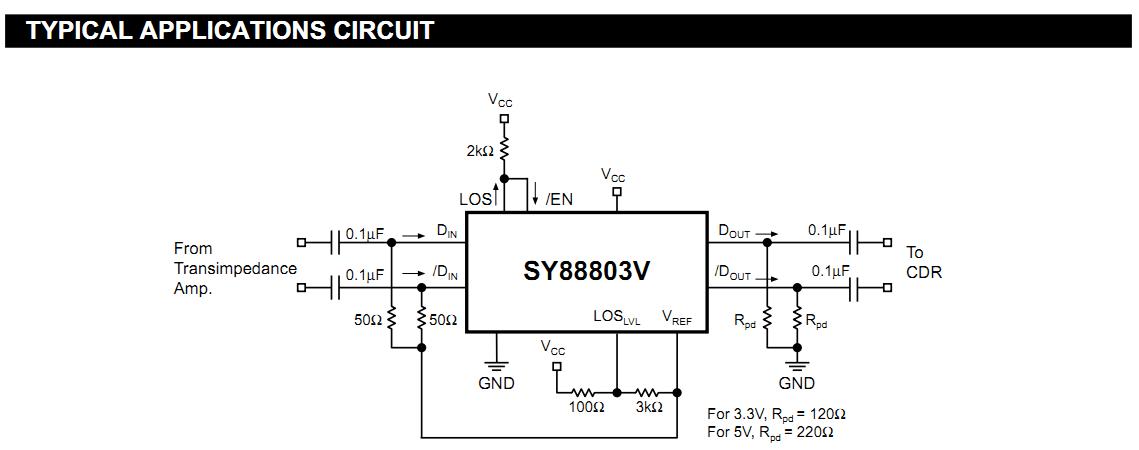

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 SY88803VKI |
|
IC AMP POST PECL 3.3V/5V 10-MSOP |
Data Sheet |
Negotiable |
|
||||
|
SY88803VKI TR |
|
IC AMP POST PECL 3.3V/5V 10-MSOP |
Data Sheet |
Negotiable |
|
||||
