TA1276AN

Product Summary

The TA1276AN is a pal / ntsc video chroma and deflection IC for XTV (normal scan / double scan mode). The TA1276AN provides Video, Chroma and Deflection (Sync, when double scan mode) circuit for a PAL / NTSC Color TV, and suitable for a high picture quality, large screen size, wide and / or double scanning TV. These functions are integrated in a 56pin dual-in-line shrink-type plastic package. The TA1276AN provides a high-performance video processor in which a YUV double scanning signal can be applied in Video, PAL / NTSC auto-detection circuit in Chroma and 50 / 60Hz auto-detection circuit in Sync. PAL demodulation circuit includes Baseband signal processing system. And this demodulation circuit does not required any adjustment. TA1276AN includes I2C bus interface, so you can adjust various functions and controls via the bus.

Parametrics

TA1276AN absolute maximum ratings: (1)Supply Voltage VCCmax: 12 V; (2)Input Terminal Voltage, einmax: 9 Vp-p; (3)Power Dissipation, PD: 1920 mW; (4)Power Dissipation Reduction Rate, 1 / θja: 15.4 mW /℃; (5)Operating Temperature, Topr: -20 to 65℃; (6)Storage Temperature, Tstg: -55 to 150℃.

Features

TA1276AN features: (1)Video / Chroma section: Y delay line; Chroma trap; IQ demodulation for NTSC, UV demodulation for PAL; (2)BEP (Back End Processor) section: Enable to process a YUV signal independently; Double scanning signal processing capability (Y processing section); (3)Black Stretcher (Controlled by I2C bus); (4)DC Restoration Circuit (Controlled by I2C bus); (5)Highbright-color Circuit; (6)D.L. Aperture Sharpness Circuit+Super Real Transcend Circuit (LTI); (7)Correction (Enable to control Binary line, Gain / Start point); (8)Y noise reduction circuit; (9)Velocity Scan Modulation output (The first order differential output and phase / amplitude adjustment) (Color difference section); (10)Color Detail Enhancer; (11)Selectable relative phase and amplitude; (12)Flesh-color restoration; (13)Color γ circuit; (14)Baseband tint color (Text section); (15)RGB primary color output; (16)On Screen Display interface; (17)Linear RGB interface; (18)Fast Blanking; (19)Drive control; (20)AKB (only black level) or Cut-off Bus control.

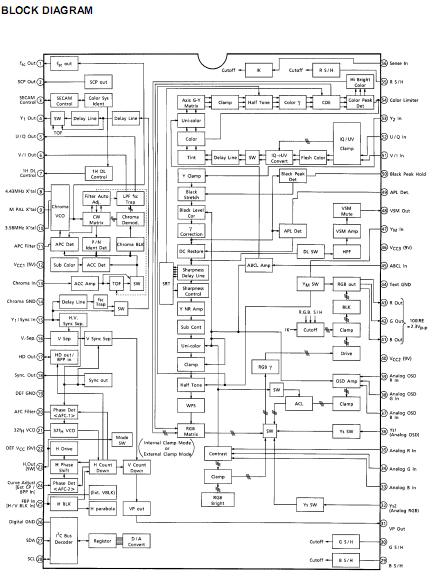

Diagrams
