Product Summary

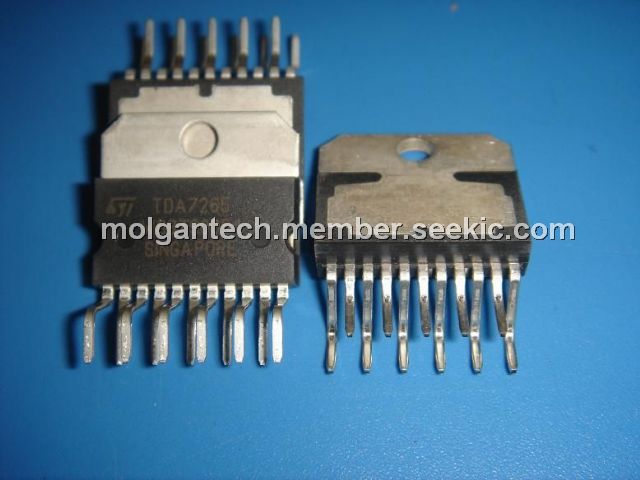

The TDA7265 is a class AB dual Audio power amplifier assembled in the Multiwatt package, specially designed for high quality sound application as Hi-Fi music centers and stereo TV sets.

Parametrics

TDA7265 absolute maximum ratings: (1)VS, DC Supply Voltage: ±25 V; (2)IO, Output Peak Current (internally limited): 4.5 A; (3)Ptot, Power Dissipation Tcase = 70℃: 30W; (4)Top, Operating Temperature: -20 to 85℃; (5)Tstg, Tj, Storage and Junction Temperature: -40 to +150℃.

Features

TDA7265 features: (1)wide supply voltage range (up to ±25V ABS MAX.); (2)split supply; (3)high output power 25 + 25W @ THD =10%, RL = 8Ω, VS = +20V; (4)no pop at turn-on/off; (5)mute (pop free); (6)stand-by feature (low Iq); (7)short circuit protection; (8)thermal overload protection.

Diagrams

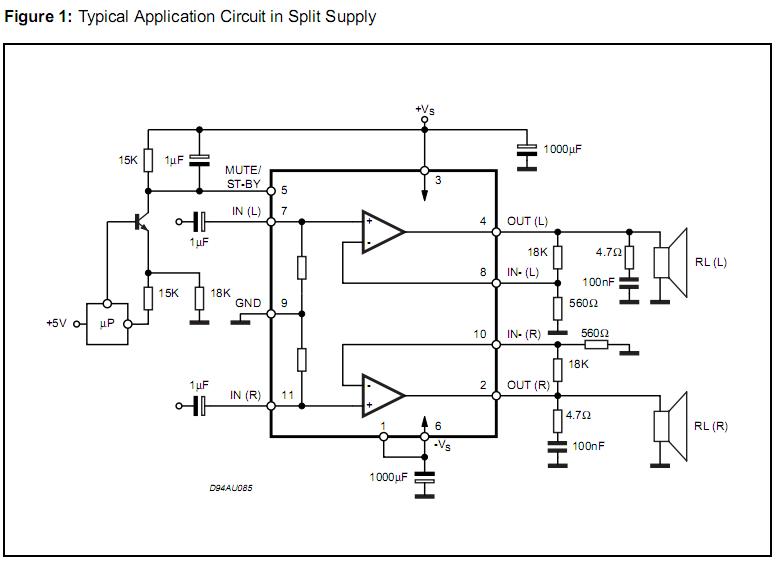

TDA7265 typical application circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TDA7265
TDA7265
STMicroelectronics
Audio Amplifiers 25W Stereo Amplifier
Data Sheet
0-1: $3.39
1-10: $2.74
10-100: $2.44
100-250: $2.18
TDA7265B
TDA7265B
STMicroelectronics
Switching Converters, Regulators & Controllers 30W 30W Stereo AMP Class AB Dual 35V
Data Sheet
0-285: $2.02
285-500: $1.82
500-1000: $1.53
1000-2000: $1.49
TDA7265A
TDA7265A
STMicroelectronics
Audio Amplifiers 25 25W STEREO AMP Mute ST-BY AB DUAL
Data Sheet
0-295: $2.60
295-500: $2.37
500-1000: $2.06
1000-2000: $1.99
