Product Summary

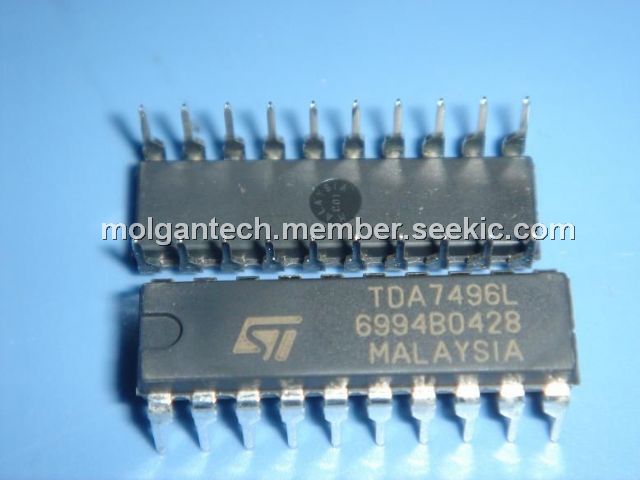

The TDA7496L is a stereo 2W+2W class AB power amplifier assembled in the @ Powerdip 14+3+3 package, specially designed for high quality sound, TV and Monitor applications. Features of the TDA7496L include linear volume control, Stand-by and mute functions.
Parametrics
TDA7496L absolute maximum ratings: (1)VS, DC Supply Voltage: 26 V; (2)VIN, Maximum Input Voltage: 8 Vpp; (3)Ptot, Total Power Dissipation (Tcase = 60℃): 6 W; (4)Tamb, Ambient Operating Temperature: 0 to 70℃; (5)Tstg, Tj, Storage and Junction Temperature: -40 to 150℃; (6)V6, Volume CTRL DC voltage: 7 V.
Features
TDA7496L features: (1)2W+2W output power RL = 8Ω @THD = 10% VCC = 14V; (2)ST-BY and mute functions; (3)low turn-on turn-off pop noise; (4)linear volume control DC coupled with power OP. AMP; (5)no boucherot cell; (6)no ST-BY RC input network; (7)single supply ranging up to 15V; (8)short circuit protection; (9)thermal overload protection; (10)internally fixed gain ; (11)soft clipping; (12)variable output after volume control circuit; (13)power DIP (14+3+3) package.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 TDA7496L |
STMicroelectronics |
Audio Amplifiers 2W DC Volume Control |
Data Sheet |
Negotiable |
|
||||
