Product Summary

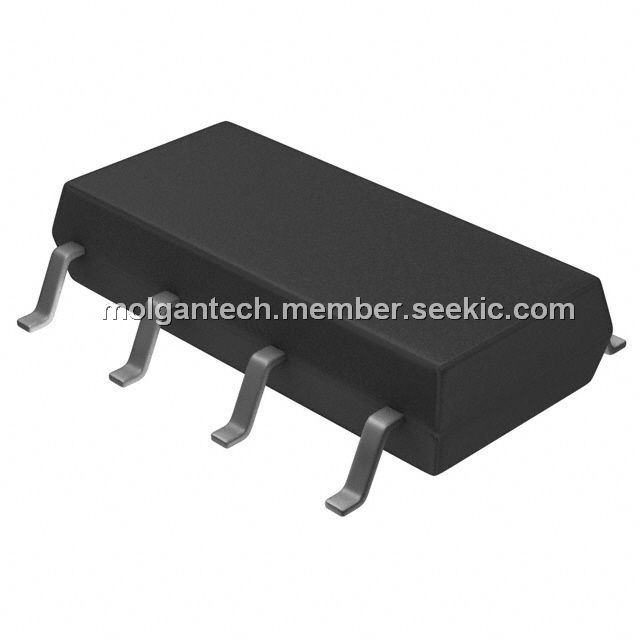

The TLP206GA is a TOSHIBA Photocoupler. TheTLP206GA consists of an aluminum gallium arsenide infrared emitting diode optically coupled to a photo-MOSFET in a SOP, which is suitable for surface mount assembly. The TLP206GA is a 2-Form-A switch, which is suitable for replacement of mechanical relays in many applications.

Parametrics

TLP206GA absolute maximum ratings: (1)Forward current IF: 50mA; (2)Forward current derating (Ta≥25℃) △IF/℃: -0.5mA/℃; (3)Peak forward current (100μs pulse, 100 pps) IFP: 1A; (4)Reverse voltage VR: 5V; (5)Junction temperature Tj: 125℃; (6)Off-state output terminal voltage VOFF: 400V; (7)On-state current ION: 120mA; (8)On-state current derating (Ta≥25℃) △ION/℃: -1.2mA/℃; (9)Detector Junction temperature Tj: 125℃; (10)Operating temperature range Topr: -40 to 85℃; (11)Storage temperature range Tstg: -55℃ to 125℃; (12)Lead soldering temperature (10s) Tsol: 260℃; (13)Isolation voltage (AC, 1 min, R.H. ≤60%)BVS: 1500Vrms.

Features

TLP206GA feature: (1)8 pin SOP (2.54SOP8): 2.1 mm high, 2.54 mm pitch; (2)2-form-A; (3)Peak off-state voltage: 400V (min); (4)Trigger LED current: 3mA (max); (5)On-state current: 120mA (max); (6)On-state resistance: 35Ω(max); (7)Isolation voltage: 1500Vrms (min).

Diagrams

TLP206GA Pin Configuration
