Product Summary

The TMP8085AP-2 is an 8-bit microprocessor. The TMP8085AP-2 uses a multiplexed data bus. The address is split between the 8 bit address bus and the 8 bit data bus.

Parametrics

TMP8085AP-2 absolute maximum ratings: (1)VCC supply voltage: -0.5V to +7.0V; (2)Soldering Temperature: 260℃ (10 sec); (3)Power Dissipation: 1.5W; (4)Storage Temperature: -55℃ to 150℃; (5)Operating Temperature: 0℃ to 70℃.

Features

TMP8085AP-2 features: (1)0.8u Sec instruction Cycle; (2)Single +5V Power supply; (3)On-chip Clock Generator; (4)On-chip System controller; Cycle status information available for large system control; (5)4 Vectored Interrupts; (6)Decimal, Binary and Double Precision Arithmetic; (7)Serial In/Serial Out Port; (8)Direct Addressing Capability up to 64K Byte Memory Space; (9)Compatible with Intel’s 8085A; (10)Low power Consumption.

Diagrams

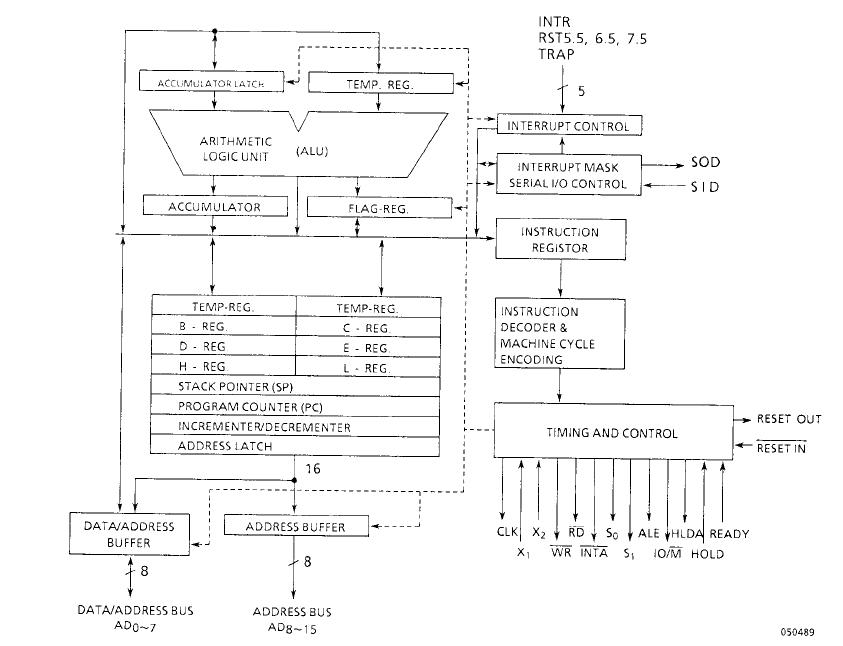

TMP8085AP-2 block diagram
