Product Summary
The UPD78044FGF-160-3B9-A is an 8-bit single-chip microcomputer which incorporates many hardware peripherals such as an FIP controller/driver, 8-bit resolution A/D converter, timer, serial interface, and interrupt controller.The one-time PROM and EPROM model that can operate in the same voltage range as that of masked ROM models, and various development tools are provided.
Parametrics
UPD78044FGF-160-3B9-A absolute maximum ratings: (1)Power supply voltage,VDD:–0.3 to +7.0V; (2)Input voltage:–0.3 to VDD + 0.3V; (3)Output voltage:–0.3 to VDD + 0.3V; (4)Output current:-10mA; (5)Total power dissipation,TA = –40 to +60 °C:800mA;; (6)Operating ambient temperature:–40 to +85°C; (7)Storage temperature:–65 to +150°C.
Features
UPD78044FGF-160-3B9-A features: (1)High-capacity ROM and RAM; (2)Wide range of instruction execution time - from high-speed (0.4 μs) to ultra low-speed (122 μs) ; (3)8-bit resolution A/D converter: 8 channels; (4)Serial interface: channels; (5)I/O ports: 68; (6)Timer:6 channels; (7)FIP controller/driver: total display outputs: 34 ; (8)Power supply voltage: VDD:2.7 to 5.5 V.

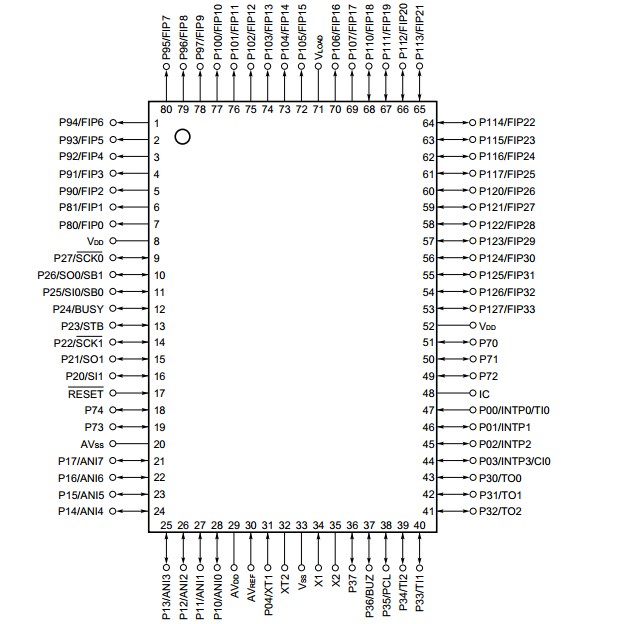

Diagrams
 |
