Product Summary

The V14MLA1206H is a transient voltage surge suppression device based on the Littelfuse Multilayer fabrication technology. The component V14MLA1206H is designed to suppress a variety of transient events, including those specified in IEC 61000-4-2 or other standards used for Electromagnetic Compliance (EMC). The V14MLA1206H is typically applied to protect integrated circuits and other components at the circuit board level.

Parametrics

V14MLA1206H absolute maximum ratings: (1)steady state applied voltage, DC voltage range, VMIDC: 3.5 to 120V; AC voltage range, VMIACRMS: 2.5 to 107V; (2)transient, non-repetitive surge current, ITM: 4 to 500A; non-repetitive surge energy, WTM: 0.002 to 2.5J; (3)operating ambient temperature range, TA: -55 to 125℃; (4)storage temperature range, Tstg: -55 to 150℃; (5)temperature coefficient of clamping voltage at specified test current: <0.01%/℃.

Features

V14MLA1206H features: (1)RoHS compliant; (2)leadless 0402, 0603, 0805, 1206 and 1210 chip sizes; (3)multilayer ceramic construction technology; (4)-55 to 125℃ operating temp range; (5)operating voltage range VM(DC)=5.5V to 120V; (6)rated for surge current; (7)rated for en energy; (8)inherent bi-directional clamping; (9)standard low capacitance types available.

Diagrams

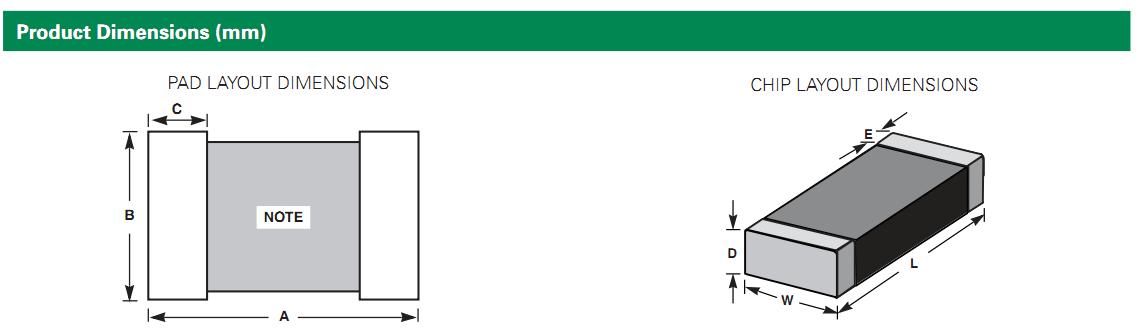

V14MLA1206H dimension
