Product Summary
The V23050-A1048-A533 is a general purpose relay. It is used for emergency shut-off, press control, machine control, elevator and escalator control, safety modules.
Parametrics
V23050-A1048-A533 specifications: (1)Contact configuration: 3 NO contacts and 3 NC contacts or 4 NO contacts and 2 NC contacts or 5 NO contacts and 1 NC contact; (2)Contact set: single contact, forcibly guided type A according to EN 50205; (3)Type of interruption: micro disconnection; (4)Rated current: 8 A; (5)Rated voltage / max.switching voltage AC: 240 / 400 VAC; (6)Maximum breaking capacity AC: 2000 VA; (7)Contact resistance: ≤ 100 mOhm / 1 A / 24 VDC; ≤ 20 Ohm / 10 mA / 5 VDC; (8)Mechanical endurance: 10×1000000 cycles; (9)Rated frequency of operation with / without load: 6 min-1 / 150 min-1.
Features
V23050-A1048-A533 features: (1)6 pole safety relay with either 4 NO+2 NC or 3 NO+3 NC or 5 NO+1 NC contacts; (2)Forcibly guided contacts according to EN 50205; (3)Rated current 8 A; (4)6 kV surge resistance between poles; (5)RoHS compliant (Directive 2002/95/EC) as perproduct date code 0407.

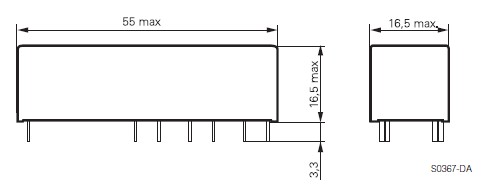

Diagrams
 |
