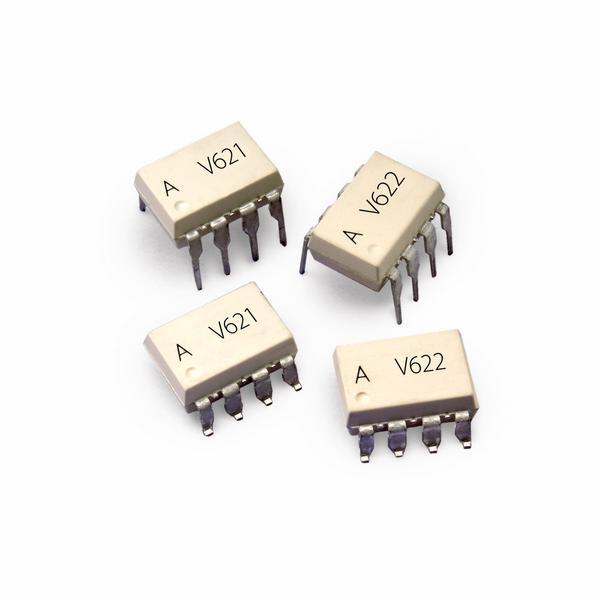

ASSR-V621-302E

dual Channel Photovoltaic MOSFET Driver, 30 mA, 100 mW, 5 V, Low Input Current

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~3.00

PartNumber:: ASSR-V621-302E

Brand:: AVAGO TECHNOLOGIES LIMITED - Avago | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Olin,Ms Stiny's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-01

From Other Seller

Part Number:ASSR-V621-302E
US $1.00 - 3.00
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
CM2030-A0TR

US $0.92 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The ASSR-V621-302E is a dual Channel Photovoltaic MOSFET Driver specially designed to drive high power MOSFETs. It consists of an AlGaAs infrared light-emitting diode (LED) input stage optically coupled to an output detector circuit. The ASSR-V621-302E detector consists of a high-speed photovoltaic diode array and driver circuitry to switch on/off two discrete high voltage MOSFETs externally. The ASSR-V621-302E relay driver turns on (contact closes) with a minimum input current of 3mA through the input LED. The relay driver turns off (contact opens) with an input voltage of 0.8V or less. The ASSR-V621-302E is suitable for Solid State Relay Module and Voltage Supply for electronic circuits.

Parametrics

ASSR-V621-302E absolute maximum ratings: (1)Storage Temperature, TS: -55 to 125℃; (2)Operating Temperature, TA: -40 to 85℃; (3)Lead Soldering Cycle, Temperature: 260℃; Time: 10 s; (4)Input Current, Average, IF: 30 mA; Surge: 300mA; Transient: 1000mA; (5)Reversed Input Voltage, VR: 5 V; (6)Input Power Dissipation, PIN: 100 mW.

Features

ASSR-V621-302E features: (1)Dual Channel Photovoltaic MOSFET Driver; (2)Open Circuit Voltage: 7V Typical; (3)Short Circuit Current: 20mA Typical; (4)Low Input Current: CMOS Compatibility; (5)Fast Switching Speed: 0.3ms (Ton), 0.03ms (Toff) Typical; (6)High Input-to-Output Insulation Voltage (Safety and Regulatory Pending Approvals): 3750 Vrms for 1 min per UL1577; CSA Component Acceptance.
