Product Summary

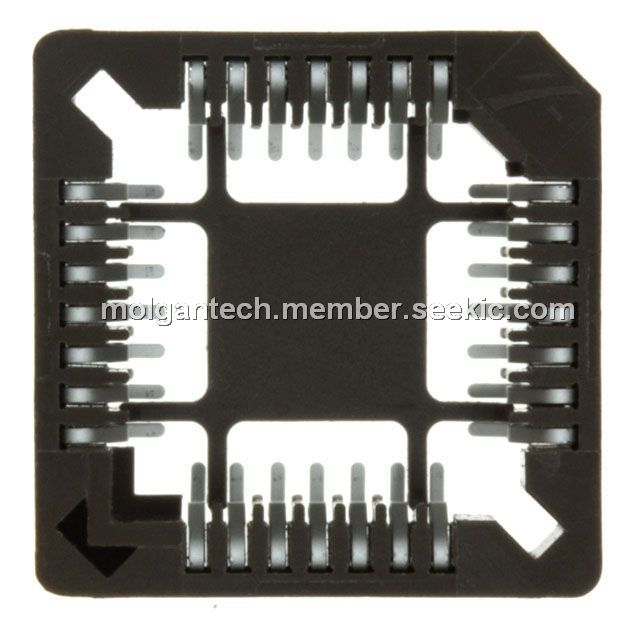

The 69802-432PT is a connector.

Parametrics

69802-432PT general specifications: (1)Manufacturer:FCI; (2)Product Category:IC & Component Sockets; (3)RoHS:Details; (4)Product:PLCC Sockets; (5)Pitch:1.27; (6)Number of Positions / Contacts:32; (7)Contact Plating:Tin; (8)Mounting Style:SMD/SMT; (9)Termination Style:Solder Pad; (10)Operating Temperature Range:- 55℃ to + 125℃; (11)Contact Material:Copper Alloy; (12)Packaging:Reel; (13)Standard Pack Qty:3900.

Diagrams

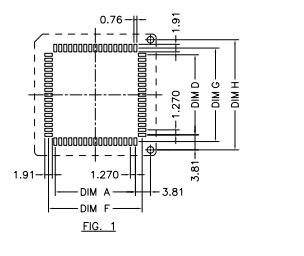

69802-432PT package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
69802-432PT
69802-432PT
FCI
IC & Component Sockets 32P PLCC FULL REEL
Data Sheet
0-390: $0.37
390-3900: $0.37
3900-7800: $0.36
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
69802-020PT
69802-020PT
FCI
IC & Component Sockets 20P PLCC SMT W/PEG
Data Sheet
0-3330: $0.41
3330-6660: $0.40
69802-028LF
69802-028LF
FCI
IC & Component Sockets 28P SMT PLCC TYPE SOCKETS
Data Sheet
0-1: $0.70
1-25: $0.63
25-100: $0.55
100-250: $0.52
69802-068LF
69802-068LF
FCI
IC & Component Sockets 68P SOCKET SMT W/POLARIZING PEGS
Data Sheet
0-1: $1.40
1-25: $1.21
25-100: $1.08
100-250: $1.01
69802-084LF
69802-084LF
FCI
IC & Component Sockets 84P SMT PLCC TYPE SOCKETS
Data Sheet
0-760: $1.03
760-1000: $1.00
1000-2000: $0.96
69802-152LF
69802-152LF
FCI
IC & Component Sockets PLCC SMT 52P
Data Sheet
0-1430: $0.79
69802-152PT
69802-152PT
FCI
IC & Component Sockets PLCC SMT 52P IN PVC TUBE
Data Sheet
0-1430: $0.79
