Product Summary

The 700303202 is an auxiliary actuator. It provides the end-user with the capability to operate the switch with force not directly in line with the operating button. The 700303202 is available in either the plain-leaf or roller-leaf style. Each actuator kit consists of the stainless steel spring-leaf with an integral side mounting plate, flexible insulator, two roundhead screws, with lockwashers and hex nuts.

Parametrics

700303202 absolute maximum ratings: (1)operating force, oz/grams: 6/170 max; (2)release force, oz/grams: 2/56 min; (3)different ial travel, in/mm: .25/(0.64) max; (4)pretravel, in/(mm): 110/(2.79) max; (5)overtravel, in/(mm): 15/(0.38) min.

Diagrams

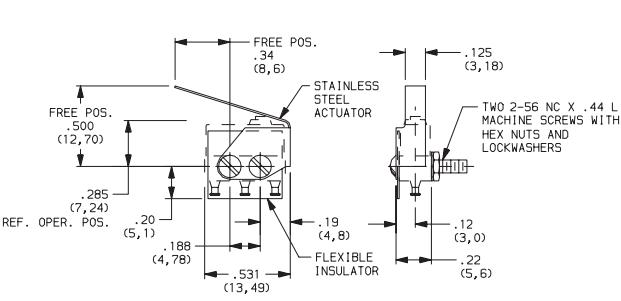

700303202 dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
700303202
700303202
C&K Components
Switch Hardware 1/4X40 LOCK WASHER
Data Sheet
0-1: $0.12
1-25: $0.12
25-50: $0.11
50-100: $0.11
