Product Summary
The 83CNQ100ASM is a schottky rectifier. The 83CNQ100ASM has been optimized for low reverse leakage at high temperature. The proprietary barrier technology allows for reliable operation up to 175℃ junction temperature. Typical applications are in switching power supplies, converters, freewheeling diodes, and reverse battery protection.
Parametrics
83CNQ100ASM absolute maximum ratings: (1)IF(AV) Rectangular waveform: 80A; (2)VRRM range: 80 to 100V; (3)IFSM @ tp = 5μs sine: 7000A; (4)VF @ 40 Apk, TJ = 125℃ (per leg): 0.67 V; (5)TJ range: - 55℃ to 175℃.
Features
83CNQ100ASM features: (1)175℃ TJ operation; (2)Center tap module; (3)High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance; (4)Low forward voltage drop; (5)High frequency operation; (6)Guard ring for enhanced ruggedness and long term reliability; (7)New fully transfer-mold low profile, small footprint, high current package.

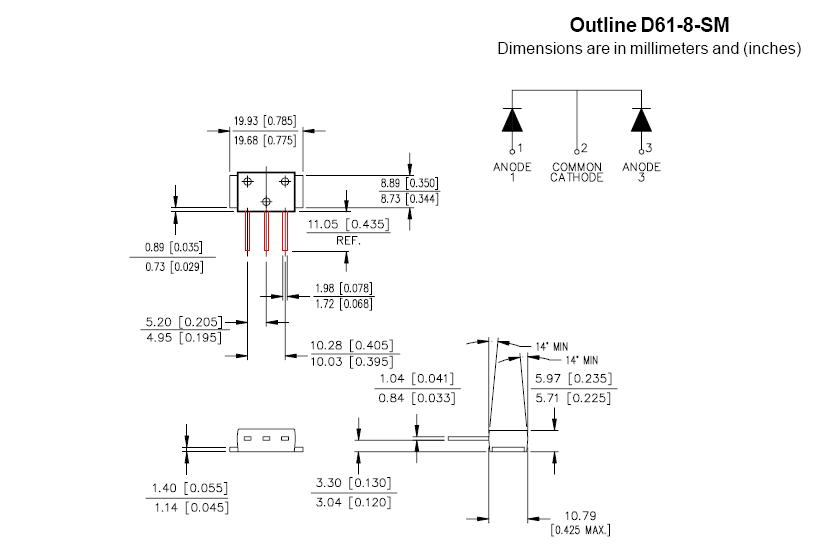

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 83CNQ100ASM |
Vishay Semiconductors |
Schottky (Diodes & Rectifiers) 80 Amp 100 Volt Common Cathode |
Data Sheet |
|
|
||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||
 |
83CNQ... |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||
|
83CNQ...APbF |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||
 |
83CNQ080A |
Vishay Semiconductors |
Schottky (Diodes & Rectifiers) 80 Amp 80 Volt Common Cathode |
Data Sheet |
|
|
||||||||||
 |
83CNQ080APBF |
|
DIODE SCHOTTKY 80V 40A D61-8 |
Data Sheet |
|
|
||||||||||
 |
83CNQ080ASL |
Vishay Semiconductors |
Schottky (Diodes & Rectifiers) 80 Amp 80 Volt Common Cathode |
Data Sheet |
|
|
||||||||||
|
83CNQ080ASM |
Vishay Semiconductors |
Schottky (Diodes & Rectifiers) 80 Amp 80 Volt Common Cathode |
Data Sheet |
|
|
||||||||||
