Product Summary

The AD8290ACPZ is a CMOS sensor amplifier with current excitation. The AD8290ACPZ contains both an adjustable current source to drive a sensor and a difference amplifier to amplify the signal voltage. The amplifier is set for a fixed gain of 50. The AD8290ACPZ is an excellent solution for both the drive and the sensing aspects required for pressure, temperature, and strain gage bridges. In addition, because the AD8290ACPZ operates with low power, works with a range of low supply voltages, and is available in a low profile package, it is suitable for drive/sense circuits in portable electronics as well. The applications of the AD8290ACPZ include bridge and sensor drives, portable electronics.

Parametrics

AD8290ACPZ absolute maximum ratings: (1)Supply Voltage: 6 V; (2)Input Voltage: +VSUPPLY; (3)Differential Input Voltage: ±VSUPPLY; (4)Output Short-Circuit Duration to GND: Indefinite; (5)Storage Temperature Range: -65℃ to +150℃; (6)Operating Temperature Range: -40℃ to +85℃; (7)Junction Temperature Range: -65℃ to +150℃; (8)Lead Temperature (Soldering, 10 sec): 300℃.

Features

AD8290ACPZ features: (1)Supply voltage range: 2.6 V to 5.5 V; (2)Low power, 1.2 mA + 2× excitation current; 0.5 μA shutdown current; (3)Low input bias current: ±100 pA; (4)High CMRR: 120 dB; (5)Space savings: 16-lead, 3.0 mm × 3.0 mm × 0.55 mm LFCSP; (6)Excitation current, 300 μA to 1300 μA range; Set with external resistor.

Diagrams

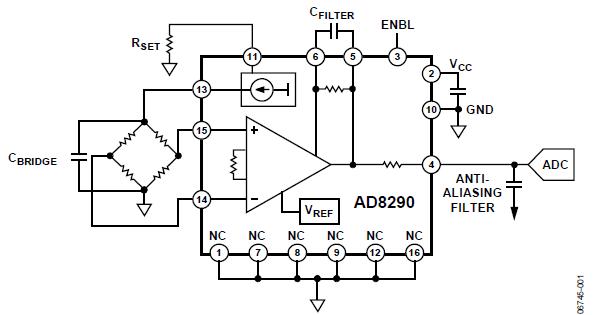

AD8290ACPZ block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD8290ACPZ-R2
AD8290ACPZ-R2

IC AMP CS CMOS LP 16LFCSP
Data Sheet
0-250: $1.58
AD8290ACPZ-R7
AD8290ACPZ-R7

IC SENSOR AMP CMOS G-50 16-LFCSP
Data Sheet
0-1: $2.36
1-10: $2.12
10-25: $1.90
25-100: $1.73
100-250: $1.57
250-500: $1.40
AD8290ACPZ-RL
AD8290ACPZ-RL

IC AMP CS CMOS LP 16LFCSP
Data Sheet
0-5000: $1.09
