Product Summary
The AD8348ARUZ is a Quadrature Demodulator with an integrated intermediate frequency (IF) variable-gain amplifier (VGA) and integrated baseband amplifiers. The AD8348ARUZ is suitable for use in communications receivers, performing quadrature demodulation from IF directly to baseband frequencies. The baseband amplifiers have been designed to directly interface with dual channel A-to-D converters such as the AD9201, AD9283, and AD9218 for digitizing and post- processing. The applications of the AD8348ARUZ include QAM/QPSK Demodulator, W-CDMA/CDMA/GSM/NADC, Wireless Local Loop, and LMDS/MMDS.
Parametrics
AD8348ARUZ absolute maximum ratings: (1)Supply Voltage VPS1, VPS2, VPS3: 5.5V; (2)LO & RF Input Power: TBD dBm; (3)Internal Power Dissipation : TBD; (4)θJA: TBD ℃/W; (5)Maximum Junction Temperature: +TBD℃; (6)Operating Temperature Range: -40℃ to +85℃; (7)Storage Temperature Range: -65℃ to +150℃; (8)Lead Temperature (Soldering 60 sec): +TBD℃.
Features
AD8348ARUZ features: (1)Integrated I/Q demodulator with IF VGA Amplifier; (2)Operating IF Frequency 50–1000 MHz (3dB IF BW of 500MHz driven from Rs=200ohms); (3)Demodulation Bandwidth 60MHz; (4)Linear-in-dB AGC Range 45dB; (5)Third Order Intercept; (6)IIP3 +26 dBm @ min gain (FIF=450MHz); (7)IIP3 -7 dBm @ max gain (FIF=450MHz); (8)Quadrature Demodulation Accuracy; (9)Phase Accuracy 0.6o RMS; (10)Amplitude Balance 0.3 dB; (11)Noise Figure 12.5dB @ max gain (FIF=500MHz); (12)LO Input -10 dBm; (13)Single Supply 2.7-5.5V; (14)Power down mode; (15)Compact 28-pin TSSOP package.

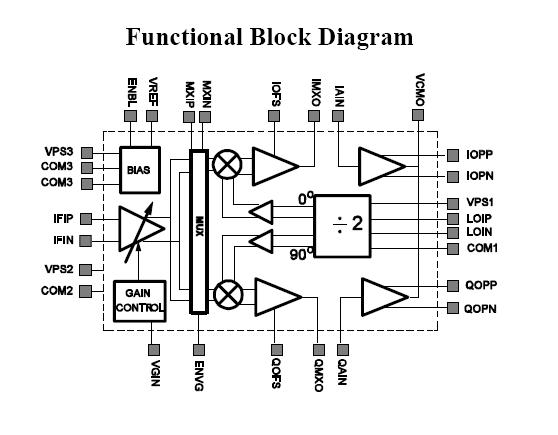

Diagrams
