ADS5500IPAPRG4

14-Bit, 125MSPS, Analog-to-Digital Converter,70.5dBFS, 82dBc, 3.3V, TQFP-64

Rated 5 Rating 5 | reviews | Write a review

Price:: US $10.00~20.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $10.00~20.00

PartNumber:: ADS5500IPAPRG4

Brand:: Texas Instruments - TI | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Olin,Ms Stiny's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-07-05

From Other Seller

Part Number:ADS5500IPAPRG4
US $10.00 - 20.00
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

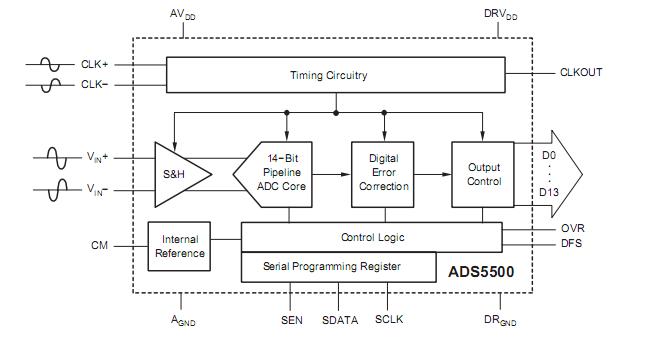

The ADS5500IPAPRG4 is a high-performance, 14-bit, 125MSPS analog-to-digital converter (ADC). To provide a complete converter solution, it includes a high-bandwidth linear sample-and-hold stage (S&H) and internal reference. Designed for applications demanding the highest speed and highest dynamic performance in very little space, the ADS5500IPAPRG4 has excellent power consumption of 780mW at 3.3V single-supply voltage. The ADS5500IPAPRG4 is available in a 64-pin TQFP PowerPAD package and is specified over the full temperature range of -40℃ to +85℃. The applications of the ADS5500IPAPRG4 are Communication Receivers, Base Station Infrastructure, Test and Measurement Instrumentation, Single and Multichannel Digital Receivers, Radar, Infrared, Video and Imaging, Medical Equipment.

Parametrics

ADS5500IPAPRG4 absolute maximum ratings: (1)Supply Voltage: AVDD to AGND, DRVDD to DRGND:-0.3V to +3.7V, AGND to DRGND:±0.1V; (2)Analog input to AGND:-0.15V to +2.5V; (3)Logic input to DRGND:-0.3V to DRVDD + 0.3V; (4)Digital data output to DRGND:-0.3V to DRVDD + 0.3V; (5)Input current (any input):30mA; (6)Operating temperature range:-40℃ to +85℃; (7)Junction temperature:+105℃; (8)Storage temperature range:-65℃ to +150℃.

Features

ADS5500IPAPRG4 features: (1)14-Bit Resolution; (2)125MSPS Sample Rate; (3)High SNR: 70.5dBFS at 100MHz fIN; (4)High SFDR: 82dBc at 100MHz fIN; (5)2.3VPP Differential Input Voltage; (6)Internal Voltage Reference; (7)3.3V Single-Supply Voltage; (8)Analog Power Dissipation: 578mW,Total Power Dissipation: 780mW; (9)Serial Programming Interface; (10)TQFP-64 PowerPAD Package.
