Product Summary
The ADT1-6T+ is a RF transformer. The applications of the ADT1-6T+ include impedance matching, balanced amplifier.
Parametrics
ADT1-6T+ absolute maximum ratings: (1)Operating Temperature: -20℃ to 85℃; (2)Storage Temperature: -55℃ to +100℃; (3)PF power: 0.5W; (4)DC Current: 30mA.
Features
ADT1-6T+ features: (1)excellent amplitude unbalance, 0.1dB typ. and phase unbalance, 1 deg.typ.in 1dB bandwidth; (2)excellent return loss, 18dB typ.in 1 dB bandwidth; (3)aqueous washable; (4)protected under US patent 6133525.

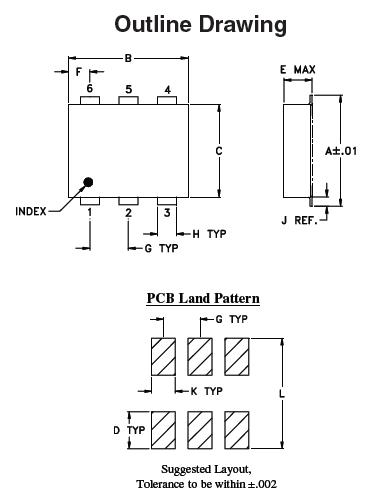

Diagrams
