Product Summary
The ADXL103CE is a high precision, low power, complete single- and dual-axis accelerometer with signal conditioned voltage outputs, all on a single, monolithic IC. The ADXL103CE measures acceleration with a full-scale range of ±1.7g. The ADXL103CE can measure both dynamic acceleration (for example, vibration) and static acceleration (for example, gravity). The applications of the ADXL103CE include Vehicle dynamic control (VDC)/electronic stability program (ESP) systems, Electronic chassis control, Electronic braking, Platform stabilization/leveling, Navigation, Alarms and motion detectors, High accuracy, 2-axis tilt sensing.
Parametrics
ADXL103CE absolute maximum ratings: (1)Acceleration (Any Axis, Unpowered): 3500g; (2)Acceleration (Any Axis, Powered): 3500g; (3)Drop Test (Concrete Surface): 1.2m; (4)VS: -0.3 V to +7.0 V; (5)All Other Pins: (COM-0.3 V) to (VS + 0.3 V); (6)Output Short-Circuit Duration (Any Pin to Common): Indefinite; (7)Temperature Range (Powered): -55℃ to +125℃; (8)Temperature Range (Storage): -65℃ to +150℃.
Features
ADXL103CE features: (1)High performance, single-/dual-axis accelerometer on a single IC chip; (2)5mm×5mm×2mm LCC package; (3)1 mg resolution at 60 Hz; (4)Low power: 700uA at VS = 5V (typical); (5)High zero g bias stability; (6)High sensitivity accuracy; (7)–40℃ to +125℃ temperature range; (8)X and Y axes aligned to within 0.1° (typical); (9)BW adjustment with a single capacitor; (10) Single-supply operation; (11)3500 g shock survival; (12) RoHS-compliant; (13) Compatible with Sn/Pb- and Pb-free solder processes.

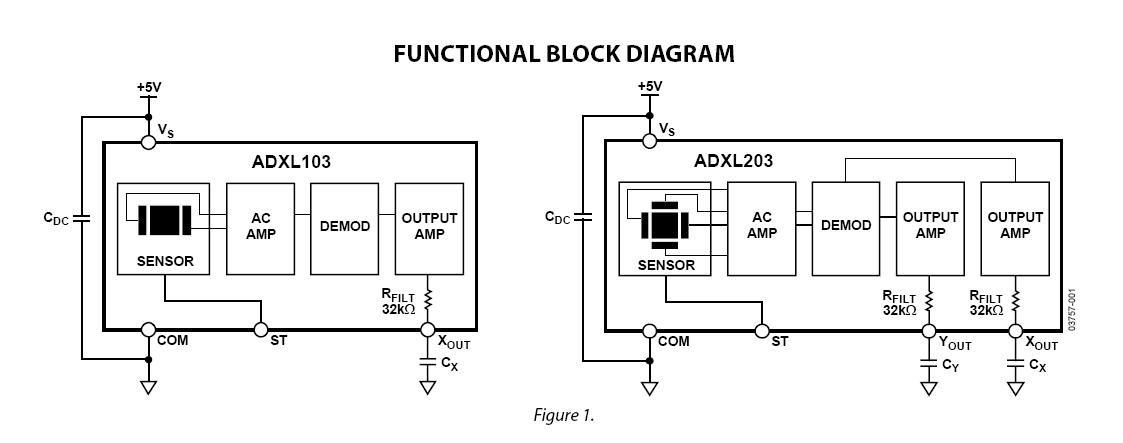

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADXL103CE |
|
IC ACCELEROMETER SNGL-AXIS 8CLCC |
Data Sheet |
|
|
||||||||||||||||
|
ADXL103CE-REEL |
|
IC ACCELEROMETER SNGL-AXIS 8CLCC |
Data Sheet |
|
|
||||||||||||||||
