Product Summary

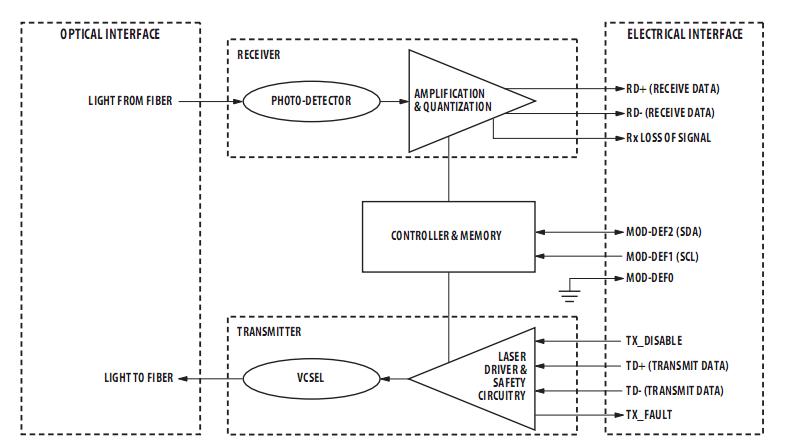

The AFBR-59R5LZ is a RoHS-Compliant Optical Transceiver. It supports high-speed serial links over multimode optical iber at signaling rates up to 4.25 GBd. The AFBR-59R5LZ is dimensionally compliant with the SFF MSA form factor with the exception of two additional pins for communicating with the diagnostic interface. As an enhancement to the conventional SFF 2x5 interface deined in the SFF MSA (Multi-Source Agreement), the AFBR-59R5LZ is compliant to SFF-8472 (digital diagnostic interface for optical transceivers). The applications of it are Fibre Channel and iSCSI HBA Cards.

Parametrics

AFBR-59R5LZ absolute maximum ratings: (1)Storage Temperature:-40 to +100℃; (2)Case Operating Temperature:-40 to +100℃; (3)Aqueous Wash Pressure:110 psi; (4)Maximum Wave or Flow Soldering Temperature:+260℃; (5)Relative Humidity, non condensing:5 to 95 %; (6)Supply Voltage:-0.5 to 3.8V; (7)Voltage to any pin:-0.5 to 3.8V; (8)Low Speed Input Voltage:-0.5 to VCC + 0.5V.

Features

AFBR-59R5LZ features: (1)Fully RoHS Compliant; (2)Diagnostic Features Per SFF-8472 “Diagnostic Monitoring Interface for Optical Transceivers” ; (3)Real time monitoring of:Transmitted Optical Power, Received Optical Power, Laser Bias Current, Temperature, Supply Voltage; (4)Wide Temp and supply voltage operation: (-10℃ to 85℃) (3.3 +/- 10%); (5)Transceiver Speciications per SFF 2x5 Multi-Source Agreement and SFF-8472 (revision 9.3): 4.25 GBd Fibre Channel operation for FC-PI 400-M5-SN-I and 400-M6-SN-I, 2.125 GBd Fibre Channel operation for FC-PI 200-M5-SN-1 and 200-M6-SN-I, 1.0625 GBd Fibre Channel operation for FC-PI 100-M5-SN-I and 100-M6-SN-I; (6)Link Lengths at 4.25 Gbd: 150 m with 50 um MMF, 70 m with 62.5 um MMF; (7)Link Lengths at 2.125 Gbd: 300m with 50um MMF, 150m with 65.5um MMF; (8)Link Lengths at 1.0625 GBd: 500 m with 50 μm MMF, 300 m with 62.5 μm MMF.
